The captive HTX-C3 heat shrink markers are excellent for marking cables, wires and conductors. Made from flame retardant, cross-linked polyolefin with a shrink ratio of 3:1, the HTX-C3 heat shrink markers cover a wide range of wire diameters and are particularly suitable for use in the electrical industry, machine and control cabinet construction and building services.

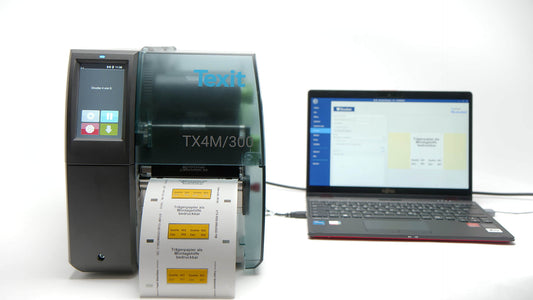

As a continuous marker, the HTX-C3 shrink sleeve marker can be printed using a Texit thermal transfer printer and perforated or cut to any length using the optional perforation knife. For an optimal printing result, we recommend the use of our high-quality thermal transfer foils.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
Article description | Article number | Size unshrunk, diameter in mm (inch) | Colour |
|
|
---|---|---|---|---|---|
HTX-C3-032x150M-WE | 57802 | 3,2 (1/8") | white | 0,25 - 1,00 | 150 |
HTX-C3-032x150M-YW | 57801 | 3,2 (1/8") | yellow | 0,25 - 1,00 | 150 |
HTX-C3-048x150M-WE | - | 4,8 (3/16") | white | 0,75 - 2,50 | 150 |
HTX-C3-048x150M-YW | 57811 | 4,8 (3/16") | yellow | 0,75 - 2,50 | 150 |
HTX-C3-064x100M-WE | 57829 | 6,4 (1/4") | white | 1,00 - 6,00 | 100 |
HTX-C3-064x100M-YW | 57822 | 6,4 (1/4") | yellow | 1,00 - 6,00 | 100 |
HTX-C3-095x100M-WE | 57832 | 9,5 (3/8") | white | 4,00 - 16,00 | 100 |
HTX-C3-095x100M-YW | 57831 | 9,5 (3/8") | yellow | 4,00 - 16,00 | 100 |
HTX-C3-127x100M-WE | 57842 | 12,7 (1/2") | white | 10,00 - 35,00 | 100 |
HTX-C3-127x100M-YW | - | 12,7 (1/2") | yellow | 10,00 - 35,00 | 100 |
HTX-C3-190x100M-WE | 57852 | 19,0 (3/4") | white | 25,00 - 50,00 | 100 |
HTX-C3-190x100M-YW | - | 19,0 (3/4") | yellow | 25,00 - 50,00 | 100 |
HTX-C3-254x100M-WE | 57862 | 25,4 (1,0") | white | 50,00 - 120,00 | 100 |
HTX-C3-254x100M-YW | 57861 | 25,4 (1,0") | yellow | 50,00 - 120,00 | 100 |
HTX-C3-381x075M-WE | - | 38,1 (1,5") | white | 120,00 - 240,00 | 75 |
HTX-C3-381x075M-YW | - | 38,1 (1,5") | yellow | 120,00 - 240,00 | 75 |
![](http://en.texit.de/cdn/shop/files/Schrumpfschlauch_beschriften_Druckservice.webp?crop=center&height=375&v=1713257160&width=375)
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service
