Cable labeling > Mark heat shrink tubing

  • HTX-C3 Heat shrink marker, endless (standard roll), yellow
  • HTX-C3 Heat shrink marker, endless (standard roll), white
  • HTX-C3 Heat shrink marker, endless (standard roll), attached to one end of heat shrink tubing
  • HTX-C3 Heat Shrinkable Marker Endless Jumbo Roll Perforated
Shrinkage rate 3:1
  • HTX-C3 Heat shrink marker, endless (standard roll), yellow
  • HTX-C3 Heat shrink marker, endless (standard roll), white
  • HTX-C3 Heat shrink marker, endless (standard roll), attached to one end of heat shrink tubing
  • HTX-C3 Heat Shrinkable Marker Endless Jumbo Roll Perforated
Jump to product information
1 from 5

Product description

The captive HTX-C3 heat shrink markers are excellent for marking cables, wires and conductors. Made from flame retardant, cross-linked polyolefin with a shrink ratio of 3:1, the HTX-C3 heat shrink markers cover a wide range of wire diameters and are particularly suitable for use in the electrical industry, machine and control cabinet construction and building services.

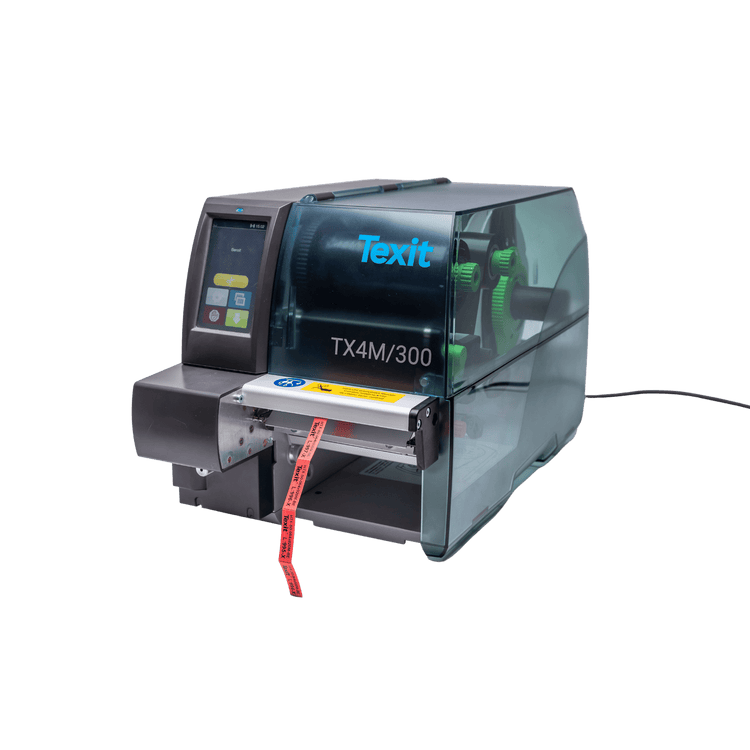

As a continuous marker, the HTX-C3 shrink sleeve marker can be printed with our Texit thermal transfer printers and perforated or cut to any length with the optional perforation knife. For an optimal printing result, we recommend the use of our high-quality thermal transfer ribbons

You can request samples of this product free of charge and without obligation!

Size chart & item designations

Article description Article number Size unshrunk, diameter in mm (inch) Colour rec_cross_section_mm2 meter_per_coil
HTX-C3-032x020M-WE 57602 3,2 (1/8") white 0,25 - 1,00 20
HTX-C3-032x020M-YW 57601 3,2 (1/8") yellow 0,25 - 1,00 20
HTX-C3-048x020M-WE 57612 4,8 (3/16") white 0,75 - 2,50 20
HTX-C3-048x020M-YW 57611 4,8 (3/16") yellow 0,75 - 2,50 20
HTX-C3-064x020M-WE 57622 6,4 (1/4") white 1,00 - 6,00 20
HTX-C3-064x020M-YW 57621 6,4 (1/4") yellow 1,00 - 6,00 20
HTX-C3-095x015M-WE 57632 9,5 (3/8") white 4,00 - 16,00 15
HTX-C3-095x015M-YW 57631 9,5 (3/8") yellow 4,00 - 16,00 15
HTX-C3-127x015M-WE 57642 12,7 (1/2") white 10,00 - 35,00 15
HTX-C3-127x015M-YW 57641 12,7 (1/2") yellow 10,00 - 35,00 15
HTX-C3-190x015M-WE 57652 19,0 (3/4") white 25,00 - 50,00 15
HTX-C3-190x015M-YW 57651 19,0 (3/4") yellow 25,00 - 50,00 15
HTX-C3-254x015M-WE 57662 25,4 (1,0") white 50,00 - 120,00 15
HTX-C3-254x015M-YW 57661 25,4 (1,0") yellow 50,00 - 120,00 15
HTX-C3-381x015M-WE 57672 38,1 (1,5") white 120,00 - 240,00 15
HTX-C3-381x015M-YW 57671 38,1 (1,5") yellow 120,00 - 240,00 15
Enlarge table
Article description Article number Size unshrunk, diameter in mm (inch) Colour rec_cross_section_mm2 meter_per_coil
HTX-C3-032x020M-WE 57602 3,2 (1/8") white 0,25 - 1,00 20
HTX-C3-032x020M-YW 57601 3,2 (1/8") yellow 0,25 - 1,00 20
HTX-C3-048x020M-WE 57612 4,8 (3/16") white 0,75 - 2,50 20
HTX-C3-048x020M-YW 57611 4,8 (3/16") yellow 0,75 - 2,50 20
HTX-C3-064x020M-WE 57622 6,4 (1/4") white 1,00 - 6,00 20
HTX-C3-064x020M-YW 57621 6,4 (1/4") yellow 1,00 - 6,00 20
HTX-C3-095x015M-WE 57632 9,5 (3/8") white 4,00 - 16,00 15
HTX-C3-095x015M-YW 57631 9,5 (3/8") yellow 4,00 - 16,00 15
HTX-C3-127x015M-WE 57642 12,7 (1/2") white 10,00 - 35,00 15
HTX-C3-127x015M-YW 57641 12,7 (1/2") yellow 10,00 - 35,00 15
HTX-C3-190x015M-WE 57652 19,0 (3/4") white 25,00 - 50,00 15
HTX-C3-190x015M-YW 57651 19,0 (3/4") yellow 25,00 - 50,00 15
HTX-C3-254x015M-WE 57662 25,4 (1,0") white 50,00 - 120,00 15
HTX-C3-254x015M-YW 57661 25,4 (1,0") yellow 50,00 - 120,00 15
HTX-C3-381x015M-WE 57672 38,1 (1,5") white 120,00 - 240,00 15
HTX-C3-381x015M-YW 57671 38,1 (1,5") yellow 120,00 - 240,00 15

HTX-C3 Heat shrink marker, endless (standard roll)
HTX-C3 Heat shrink marker, endless (standard roll)

:

:

:

:

Your contact

Drazen Milosevic +49 (0) 6071 928 4023
Product ADVICE REQUEST
Meters per spool: 20
Colour: White
Other colors available upon request.
3-5 working days standard delivery

Product description

The captive HTX-C3 heat shrink markers are excellent for marking cables, wires and conductors. Made from flame retardant, cross-linked polyolefin with a shrink ratio of 3:1, the HTX-C3 heat shrink markers cover a wide range of wire diameters and are particularly suitable for use in the electrical industry, machine and control cabinet construction and building services.

As a continuous marker, the HTX-C3 shrink sleeve marker can be printed with our Texit thermal transfer printers and perforated or cut to any length with the optional perforation knife. For an optimal printing result, we recommend the use of our high-quality thermal transfer ribbons

You can request samples of this product free of charge and without obligation!

Size chart & item designations

Article description Article number Size unshrunk, diameter in mm (inch) Colour rec_cross_section_mm2 meter_per_coil
HTX-C3-032x020M-WE 57602 3,2 (1/8") white 0,25 - 1,00 20
HTX-C3-032x020M-YW 57601 3,2 (1/8") yellow 0,25 - 1,00 20
HTX-C3-048x020M-WE 57612 4,8 (3/16") white 0,75 - 2,50 20
HTX-C3-048x020M-YW 57611 4,8 (3/16") yellow 0,75 - 2,50 20
HTX-C3-064x020M-WE 57622 6,4 (1/4") white 1,00 - 6,00 20
HTX-C3-064x020M-YW 57621 6,4 (1/4") yellow 1,00 - 6,00 20
HTX-C3-095x015M-WE 57632 9,5 (3/8") white 4,00 - 16,00 15
HTX-C3-095x015M-YW 57631 9,5 (3/8") yellow 4,00 - 16,00 15
HTX-C3-127x015M-WE 57642 12,7 (1/2") white 10,00 - 35,00 15
HTX-C3-127x015M-YW 57641 12,7 (1/2") yellow 10,00 - 35,00 15
HTX-C3-190x015M-WE 57652 19,0 (3/4") white 25,00 - 50,00 15
HTX-C3-190x015M-YW 57651 19,0 (3/4") yellow 25,00 - 50,00 15
HTX-C3-254x015M-WE 57662 25,4 (1,0") white 50,00 - 120,00 15
HTX-C3-254x015M-YW 57661 25,4 (1,0") yellow 50,00 - 120,00 15
HTX-C3-381x015M-WE 57672 38,1 (1,5") white 120,00 - 240,00 15
HTX-C3-381x015M-YW 57671 38,1 (1,5") yellow 120,00 - 240,00 15
Enlarge table
Article description Article number Size unshrunk, diameter in mm (inch) Colour rec_cross_section_mm2 meter_per_coil
HTX-C3-032x020M-WE 57602 3,2 (1/8") white 0,25 - 1,00 20
HTX-C3-032x020M-YW 57601 3,2 (1/8") yellow 0,25 - 1,00 20
HTX-C3-048x020M-WE 57612 4,8 (3/16") white 0,75 - 2,50 20
HTX-C3-048x020M-YW 57611 4,8 (3/16") yellow 0,75 - 2,50 20
HTX-C3-064x020M-WE 57622 6,4 (1/4") white 1,00 - 6,00 20
HTX-C3-064x020M-YW 57621 6,4 (1/4") yellow 1,00 - 6,00 20
HTX-C3-095x015M-WE 57632 9,5 (3/8") white 4,00 - 16,00 15
HTX-C3-095x015M-YW 57631 9,5 (3/8") yellow 4,00 - 16,00 15
HTX-C3-127x015M-WE 57642 12,7 (1/2") white 10,00 - 35,00 15
HTX-C3-127x015M-YW 57641 12,7 (1/2") yellow 10,00 - 35,00 15
HTX-C3-190x015M-WE 57652 19,0 (3/4") white 25,00 - 50,00 15
HTX-C3-190x015M-YW 57651 19,0 (3/4") yellow 25,00 - 50,00 15
HTX-C3-254x015M-WE 57662 25,4 (1,0") white 50,00 - 120,00 15
HTX-C3-254x015M-YW 57661 25,4 (1,0") yellow 50,00 - 120,00 15
HTX-C3-381x015M-WE 57672 38,1 (1,5") white 120,00 - 240,00 15
HTX-C3-381x015M-YW 57671 38,1 (1,5") yellow 120,00 - 240,00 15
57602, 57601, 57612, 57611, 57622, 57621, 57632, 57631, 57642, 57641, 57652, 57651, 57662, 57661, 57672, 57671,
