Print heat shrink tube
Shrink sleeve printing made easy | ➡️ Whether you want to print yourself with a labeling device or make use of our printing service.
Cable labeling > Labeling heat shrink tubing
Halogen-free
Shrinkage rate 3:1
UL 224 compliant
Product description
Product description

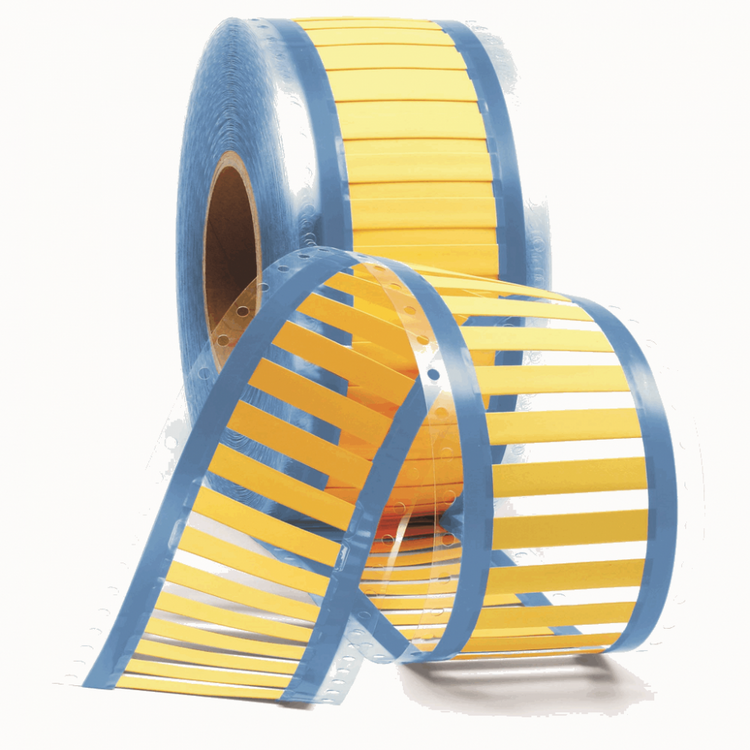

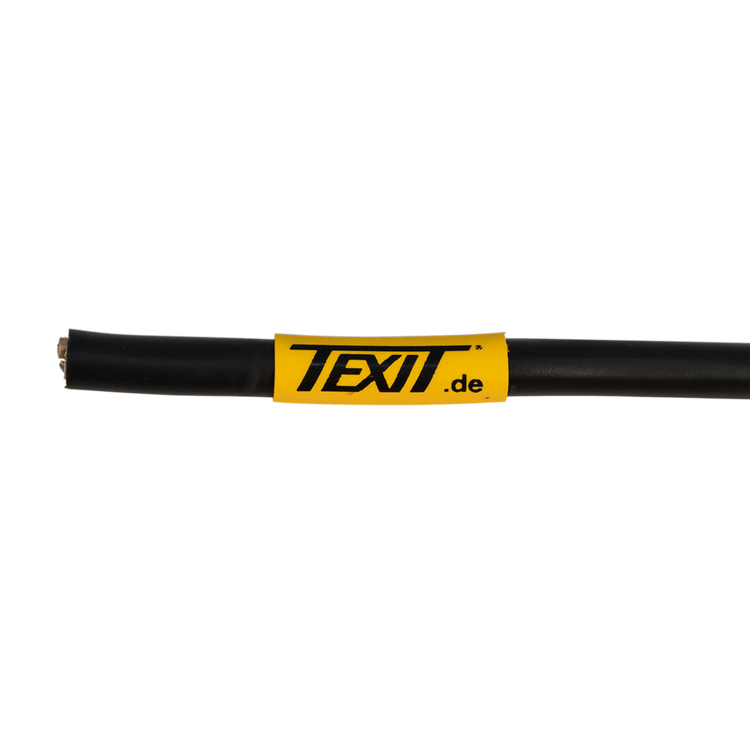

The HTX-LW0 heat shrinkable tubing markers made of radiation cross-linked polyolefin contain no added halogens and offer good fire properties with low smoke emission. With a shrink ratio of 3:1, the marker sleeves cover a wide range of wire diameters. The HTX-LW0 heat shrinkable tubing markers are particularly suitable for marking wires and various cables in the electrical industry, mechanical engineering, control cabinet construction, building services, wind energy and the telecom industry.

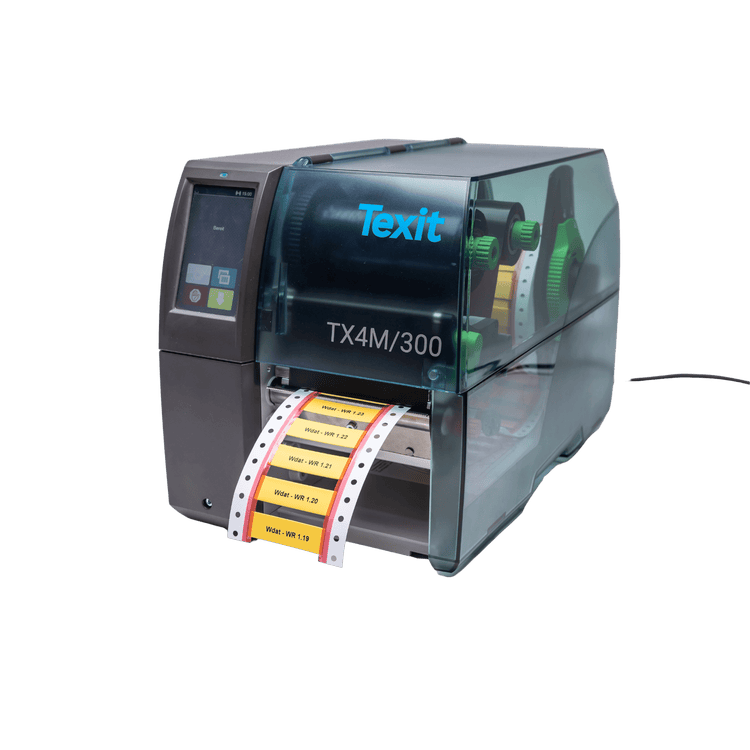

The material of the HTX-LW0 heat shrink tube markers complies with UL 224 requirements and is particularly suitable for printing using TEXIT thermal transfer printers and TEXIT ink ribbons for good resistance to abrasion and many cleaning agents. The HTX-LW0 heat shrink markers can be printed from both sides.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size unshrunk, diameter in mm (inch) x length in mm | Colour |
|
|
|
|
|---|---|---|---|---|---|---|---|
| HTX-LW0-032x028-WE | 75213 | 3,2 (1/8″) x 28,00 | white | 1,50 - 2,50 | 0,5 - 1,00 | 2 | 5.000 |
| HTX-LW0-032x028-YW | 75113 | 3,2 (1/8″) x 28,00 | yellow | 1,50 - 2,50 | 0,5 - 1,00 | 2 | 5.000 |
| HTX-LW0-032x056-WE | 75210 | 3,2 (1/8″) x 56,00 | white | 1,50 - 2,50 | 0,5 - 1,00 | 1 | 2.500 |
| HTX-LW0-032x056-YW | 75110 | 3,2 (1/8″) x 56,00 | yellow | 1,50 - 2,50 | 0,5 - 1,00 | 1 | 2.500 |
| HTX-LW0-048x028-WE | 75223 | 4,8 (3/16") x 28,00 | white | 2,00 - 4,00 | 1,00 - 2,50 | 2 | 4.000 |
| HTX-LW0-048x028-YW | 75123 | 4,8 (3/16") x 28,00 | yellow | 2,00 - 4,00 | 1,00 - 2,50 | 2 | 4.000 |
| HTX-LW0-048x056-WE | 75220 | 4,8 (3/16") x 56,00 | white | 2,00 - 4,00 | 1,00 - 2,50 | 1 | 2.000 |
| HTX-LW0-048x056-YW | 75120 | 4,8 (3/16") x 56,00 | yellow | 2,00 - 4,00 | 1,00 - 2,50 | 1 | 2.000 |
| HTX-LW0-064x028-WE | 75233 | 6,4 (1/4") x 28,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 4.000 |
| HTX-LW0-064x028-YW | 75133 | 6,4 (1/4") x 28,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 4.000 |
| HTX-LW0-064x056-WE | 75230 | 6,4 (1/4") x 56,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 2.000 |
| HTX-LW0-064x056-YW | 75130 | 6,4 (1/4") x 56,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 2.000 |
| HTX-LW0-095x028-WE | 75243 | 9,5 (3/8") x 28,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 4.000 |
| HTX-LW0-095x028-YW | 75143 | 9,5 (3/8") x 28,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 4.000 |
| HTX-LW0-095x056-WE | 75240 | 9,5 (3/8") x 56,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 2.000 |
| HTX-LW0-095x056-YW | 75140 | 9,5 (3/8") x 56,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 2.000 |
| HTX-LW0-127x028-WE | 75253 | 12,7 (1/2") x 28,00 | white | 5,00 - 11,00 | 10,0 - 35,0 | 2 | 2.000 |
| HTX-LW0-127x028-YW | 75153 | 12,7 (1/2") x 28,00 | yellow | 5,00 - 11,00 | 10,0 - 35,0 | 2 | 2.000 |
| HTX-LW0-127x056-WE | 75250 | 12,7 (1/2") x 56,00 | white | 5,00 - 11,00 | 10,0 - 35,0 | 1 | 1.000 |
| HTX-LW0-127x056-YW | 75150 | 12,7 (1/2") x 56,00 | yellow | 5,00 - 11,00 | 10,0 - 35,0 | 1 | 1.000 |
| HTX-LW0-190x028-WE | 75263 | 19,0 (3/4") x 28,00 | white | 7,00 - 17,00 | 25,0 - 50,0 | 2 | 2.000 |
| HTX-LW0-190x028-YW | 75163 | 19,0 (3/4") x 28,00 | yellow | 7,00 - 17,00 | 25,0 - 50,0 | 2 | 2.000 |
| HTX-LW0-190x056-WE | 75260 | 19,0 (3/4") x 56,00 | white | 7,00 - 17,00 | 25,0 - 50,0 | 1 | 1.000 |
| HTX-LW0-190x056-YW | 75160 | 19,0 (3/4") x 56,00 | yellow | 7,00 - 17,00 | 25,0 - 50,0 | 1 | 1.000 |
| HTX-LW0-254x056-WE | 75270 | 25,4 (1,0") x 56,00 | white | 9,00 - 23,00 | 50,0 - 120,0 | 1 | 500 |
| HTX-LW0-254x056-YW | 75170 | 25,4 (1,0") x 56,00 | yellow | 9,00 - 23,00 | 50,0 - 120,0 | 1 | 500 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service
HTX-LW0 Heat shrink marker, assembled
HTX-LW0
Heat shrink marker,
assembled
:
:
:
:
:
3-5 working days standard delivery
Availability for collections could not be loaded
Product description
Product description
The HTX-LW0 heat shrinkable tubing markers made of radiation cross-linked polyolefin contain no added halogens and offer good fire properties with low smoke emission. With a shrink ratio of 3:1, the marker sleeves cover a wide range of wire diameters. The HTX-LW0 heat shrinkable tubing markers are particularly suitable for marking wires and various cables in the electrical industry, mechanical engineering, control cabinet construction, building services, wind energy and the telecom industry.
The material of the HTX-LW0 heat shrink tube markers complies with UL 224 requirements and is particularly suitable for printing using TEXIT thermal transfer printers and TEXIT ink ribbons for good resistance to abrasion and many cleaning agents. The HTX-LW0 heat shrink markers can be printed from both sides.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size unshrunk, diameter in mm (inch) x length in mm | Colour |
|
|
|
|
|---|---|---|---|---|---|---|---|
| HTX-LW0-032x028-WE | 75213 | 3,2 (1/8″) x 28,00 | white | 1,50 - 2,50 | 0,5 - 1,00 | 2 | 5.000 |
| HTX-LW0-032x028-YW | 75113 | 3,2 (1/8″) x 28,00 | yellow | 1,50 - 2,50 | 0,5 - 1,00 | 2 | 5.000 |
| HTX-LW0-032x056-WE | 75210 | 3,2 (1/8″) x 56,00 | white | 1,50 - 2,50 | 0,5 - 1,00 | 1 | 2.500 |
| HTX-LW0-032x056-YW | 75110 | 3,2 (1/8″) x 56,00 | yellow | 1,50 - 2,50 | 0,5 - 1,00 | 1 | 2.500 |
| HTX-LW0-048x028-WE | 75223 | 4,8 (3/16") x 28,00 | white | 2,00 - 4,00 | 1,00 - 2,50 | 2 | 4.000 |
| HTX-LW0-048x028-YW | 75123 | 4,8 (3/16") x 28,00 | yellow | 2,00 - 4,00 | 1,00 - 2,50 | 2 | 4.000 |
| HTX-LW0-048x056-WE | 75220 | 4,8 (3/16") x 56,00 | white | 2,00 - 4,00 | 1,00 - 2,50 | 1 | 2.000 |
| HTX-LW0-048x056-YW | 75120 | 4,8 (3/16") x 56,00 | yellow | 2,00 - 4,00 | 1,00 - 2,50 | 1 | 2.000 |
| HTX-LW0-064x028-WE | 75233 | 6,4 (1/4") x 28,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 4.000 |
| HTX-LW0-064x028-YW | 75133 | 6,4 (1/4") x 28,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 4.000 |
| HTX-LW0-064x056-WE | 75230 | 6,4 (1/4") x 56,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 2.000 |
| HTX-LW0-064x056-YW | 75130 | 6,4 (1/4") x 56,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 2.000 |
| HTX-LW0-095x028-WE | 75243 | 9,5 (3/8") x 28,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 4.000 |
| HTX-LW0-095x028-YW | 75143 | 9,5 (3/8") x 28,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 4.000 |
| HTX-LW0-095x056-WE | 75240 | 9,5 (3/8") x 56,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 2.000 |
| HTX-LW0-095x056-YW | 75140 | 9,5 (3/8") x 56,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 2.000 |
| HTX-LW0-127x028-WE | 75253 | 12,7 (1/2") x 28,00 | white | 5,00 - 11,00 | 10,0 - 35,0 | 2 | 2.000 |
| HTX-LW0-127x028-YW | 75153 | 12,7 (1/2") x 28,00 | yellow | 5,00 - 11,00 | 10,0 - 35,0 | 2 | 2.000 |
| HTX-LW0-127x056-WE | 75250 | 12,7 (1/2") x 56,00 | white | 5,00 - 11,00 | 10,0 - 35,0 | 1 | 1.000 |
| HTX-LW0-127x056-YW | 75150 | 12,7 (1/2") x 56,00 | yellow | 5,00 - 11,00 | 10,0 - 35,0 | 1 | 1.000 |
| HTX-LW0-190x028-WE | 75263 | 19,0 (3/4") x 28,00 | white | 7,00 - 17,00 | 25,0 - 50,0 | 2 | 2.000 |
| HTX-LW0-190x028-YW | 75163 | 19,0 (3/4") x 28,00 | yellow | 7,00 - 17,00 | 25,0 - 50,0 | 2 | 2.000 |
| HTX-LW0-190x056-WE | 75260 | 19,0 (3/4") x 56,00 | white | 7,00 - 17,00 | 25,0 - 50,0 | 1 | 1.000 |
| HTX-LW0-190x056-YW | 75160 | 19,0 (3/4") x 56,00 | yellow | 7,00 - 17,00 | 25,0 - 50,0 | 1 | 1.000 |
| HTX-LW0-254x056-WE | 75270 | 25,4 (1,0") x 56,00 | white | 9,00 - 23,00 | 50,0 - 120,0 | 1 | 500 |
| HTX-LW0-254x056-YW | 75170 | 25,4 (1,0") x 56,00 | yellow | 9,00 - 23,00 | 50,0 - 120,0 | 1 | 500 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service
