Print heat shrink tube
Shrink sleeve printing made easy | ➡️ Whether you want to print yourself with a labeling device or make use of our printing service.
Cable labeling > Labeling heat shrink tubing
Shrinkage rate 3:1
Product description
Product description

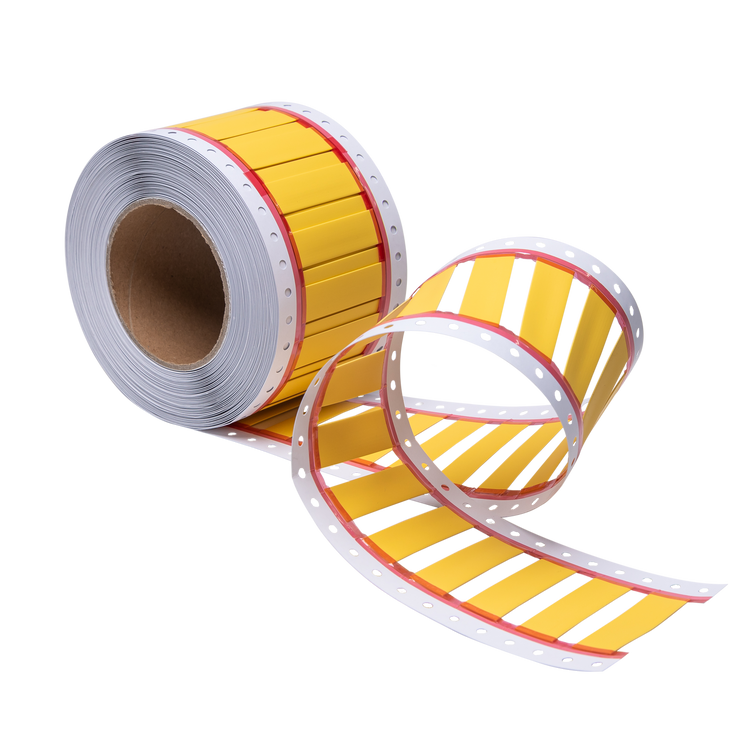

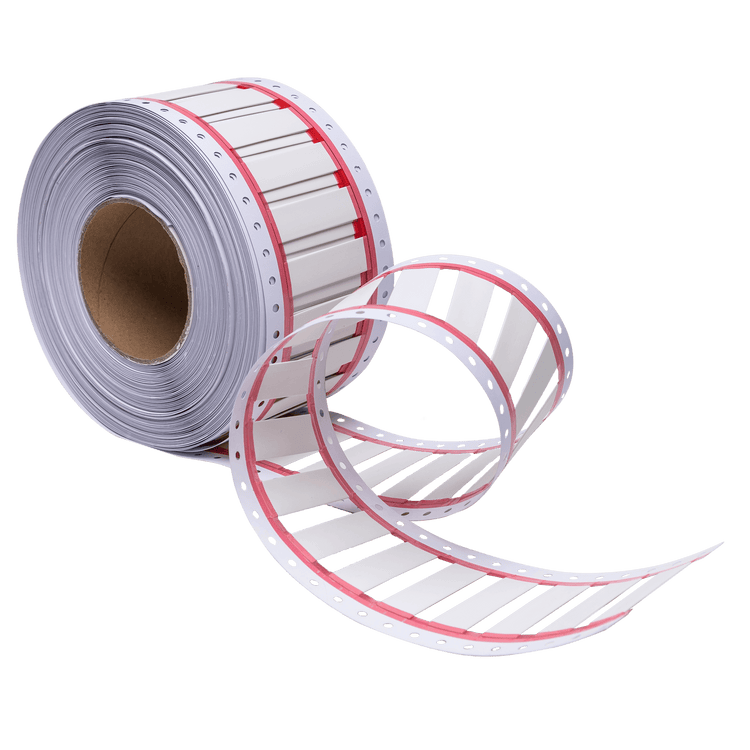

Made from flame retardant, radiation cross-linked polyolefin with a shrink ratio of 3:1 in various diameters, the HTX-LW3 heat shrink markers cover a wide range of wire diameters. The HTX-LW3 heat shrinkable tubing markers are particularly suitable for marking wires, various cables and pipes in the medical technology, chemical and defence industries. The marker tubes are taped between two perforated transport strips and are available in two lengths (1 x 56 mm or 2 x 28 mm) as standard.
High resistance to abrasion and many cleaning agents can be achieved with the TEXIT thermal transfer printers in combination with the specially developed ink ribbons ... The HTX-LW3 shrink sleeve markers can be printed on both sides.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size unshrunk, diameter in mm (inch) x length in mm | Colour |
|
|
|
|
|---|---|---|---|---|---|---|---|
| HTX-LW3-032x028-WE | 76213 | 3,2 (1/8″) x 28,00 | white | 1,50 - 2,50 | 0,5 - 1,00 | 2 | 5.000 |
| HTX-LW3-032x028-YW | 76113 | 3,2 (1/8″) x 28,00 | yellow | 1,50 - 2,50 | 0,5 - 1,00 | 2 | 5.000 |
| HTX-LW3-032x056-WE | 76210 | 3,2 (1/8″) x 56,00 | white | 1,50 - 2,50 | 0,5 - 1,00 | 1 | 2.500 |
| HTX-LW3-032x056-YW | 76110 | 3,2 (1/8″) x 56,00 | yellow | 1,50 - 2,50 | 0,5 - 1,00 | 1 | 2.500 |
| HTX-LW3-048x028-WE | 76223 | 4,8 (3/16") x 28,00 | white | 2,00 - 4,00 | 1,00 - 2,50 | 2 | 4.000 |
| HTX-LW3-048x028-YW | 76123 | 4,8 (3/16") x 28,00 | yellow | 2,00 - 4,00 | 1,00 - 2,50 | 2 | 4.000 |
| HTX-LW3-048x056-WE | 76220 | 4,8 (3/16") x 56,00 | white | 2,00 - 4,00 | 1,00 - 2,50 | 1 | 2.000 |
| HTX-LW3-048x056-YW | 76120 | 4,8 (3/16") x 56,00 | yellow | 2,00 - 4,00 | 1,00 - 2,50 | 1 | 2.000 |
| HTX-LW3-064x028-WE | 76233 | 6,4 (1/4") x 28,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 4.000 |
| HTX-LW3-064x028-YW | 76133 | 6,4 (1/4") x 28,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 4.000 |
| HTX-LW3-064x056-WE | 76230 | 6,4 (1/4") x 56,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 2.000 |
| HTX-LW3-064x056-YW | 76130 | 6,4 (1/4") x 56,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 2.000 |
| HTX-LW3-095x028-WE | 76243 | 9,5 (3/8") x 28,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 4.000 |
| HTX-LW3-095x028-YW | 76143 | 9,5 (3/8") x 28,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 4.000 |
| HTX-LW3-095x056-WE | 76240 | 9,5 (3/8") x 56,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 2.000 |
| HTX-LW3-095x056-YW | 76140 | 9,5 (3/8") x 56,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 2.000 |
| HTX-LW3-127x028-WE | 76253 | 12,7 (1/2") x 28,00 | white | 5,00 - 11,00 | 10,0 - 35,0 | 2 | 2.000 |
| HTX-LW3-127x028-YW | 76153 | 12,7 (1/2") x 28,00 | yellow | 5,00 - 11,00 | 10,0 - 35,0 | 2 | 2.000 |
| HTX-LW3-127x056-WE | 76250 | 12,7 (1/2") x 56,00 | white | 5,00 - 11,00 | 10,0 - 35,0 | 1 | 1.000 |
| HTX-LW3-127x056-YW | 76150 | 12,7 (1/2") x 56,00 | yellow | 5,00 - 11,00 | 10,0 - 35,0 | 1 | 1.000 |
| HTX-LW3-190x028-WE | 76263 | 19,0 (3/4") x 28,00 | white | 7,00 - 17,00 | 25,0 - 50,0 | 2 | 2.000 |
| HTX-LW3-190x028-YW | 76163 | 19,0 (3/4") x 28,00 | yellow | 7,00 - 17,00 | 25,0 - 50,0 | 2 | 2.000 |
| HTX-LW3-190x056-WE | 76260 | 19,0 (3/4") x 56,00 | white | 7,00 - 17,00 | 25,0 - 50,0 | 1 | 1.000 |
| HTX-LW3-190x056-YW | 76160 | 19,0 (3/4") x 56,00 | yellow | 7,00 - 17,00 | 25,0 - 50,0 | 1 | 1.000 |
| HTX-LW3-254x056-WE | 76270 | 25,4 (1,0") x 56,00 | white | 9,00 - 23,00 | 50,0 - 120,0 | 1 | 500 |
| HTX-LW3-254x056-YW | 76170 | 25,4 (1,0") x 56,00 | yellow | 9,00 - 23,00 | 50,0 - 120,0 | 1 | 500 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service

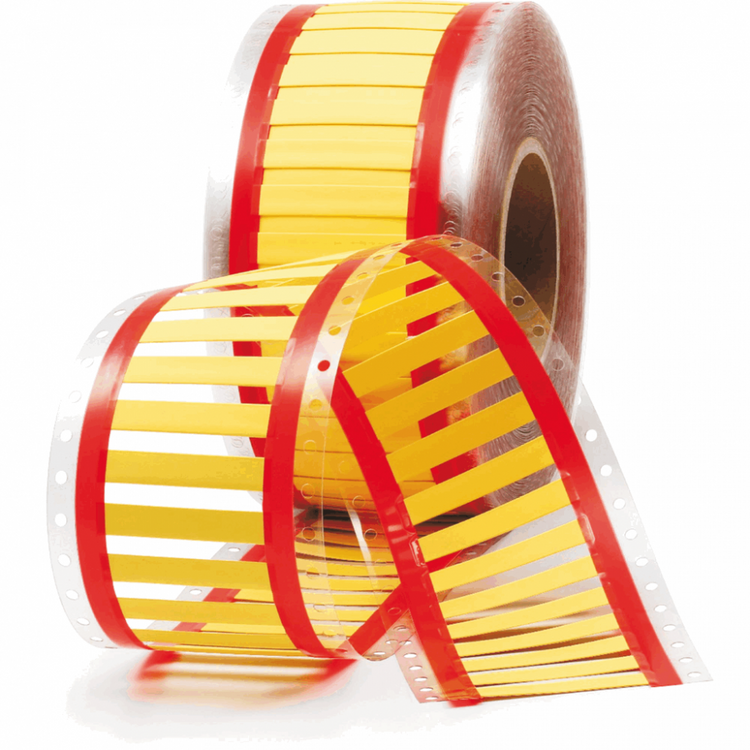

HTX-LW3 Heat shrink marker, assembled
HTX-LW3
Heat shrink marker,
assembled
:
:
:
:
:
3-5 working days standard delivery
Availability for collections could not be loaded
Product description
Product description
Made from flame retardant, radiation cross-linked polyolefin with a shrink ratio of 3:1 in various diameters, the HTX-LW3 heat shrink markers cover a wide range of wire diameters. The HTX-LW3 heat shrinkable tubing markers are particularly suitable for marking wires, various cables and pipes in the medical technology, chemical and defence industries. The marker tubes are taped between two perforated transport strips and are available in two lengths (1 x 56 mm or 2 x 28 mm) as standard.
High resistance to abrasion and many cleaning agents can be achieved with the TEXIT thermal transfer printers in combination with the specially developed ink ribbons ... The HTX-LW3 shrink sleeve markers can be printed on both sides.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size unshrunk, diameter in mm (inch) x length in mm | Colour |
|
|
|
|
|---|---|---|---|---|---|---|---|
| HTX-LW3-032x028-WE | 76213 | 3,2 (1/8″) x 28,00 | white | 1,50 - 2,50 | 0,5 - 1,00 | 2 | 5.000 |
| HTX-LW3-032x028-YW | 76113 | 3,2 (1/8″) x 28,00 | yellow | 1,50 - 2,50 | 0,5 - 1,00 | 2 | 5.000 |
| HTX-LW3-032x056-WE | 76210 | 3,2 (1/8″) x 56,00 | white | 1,50 - 2,50 | 0,5 - 1,00 | 1 | 2.500 |
| HTX-LW3-032x056-YW | 76110 | 3,2 (1/8″) x 56,00 | yellow | 1,50 - 2,50 | 0,5 - 1,00 | 1 | 2.500 |
| HTX-LW3-048x028-WE | 76223 | 4,8 (3/16") x 28,00 | white | 2,00 - 4,00 | 1,00 - 2,50 | 2 | 4.000 |
| HTX-LW3-048x028-YW | 76123 | 4,8 (3/16") x 28,00 | yellow | 2,00 - 4,00 | 1,00 - 2,50 | 2 | 4.000 |
| HTX-LW3-048x056-WE | 76220 | 4,8 (3/16") x 56,00 | white | 2,00 - 4,00 | 1,00 - 2,50 | 1 | 2.000 |
| HTX-LW3-048x056-YW | 76120 | 4,8 (3/16") x 56,00 | yellow | 2,00 - 4,00 | 1,00 - 2,50 | 1 | 2.000 |
| HTX-LW3-064x028-WE | 76233 | 6,4 (1/4") x 28,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 4.000 |
| HTX-LW3-064x028-YW | 76133 | 6,4 (1/4") x 28,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 4.000 |
| HTX-LW3-064x056-WE | 76230 | 6,4 (1/4") x 56,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 2.000 |
| HTX-LW3-064x056-YW | 76130 | 6,4 (1/4") x 56,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 2.000 |
| HTX-LW3-095x028-WE | 76243 | 9,5 (3/8") x 28,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 4.000 |
| HTX-LW3-095x028-YW | 76143 | 9,5 (3/8") x 28,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 4.000 |
| HTX-LW3-095x056-WE | 76240 | 9,5 (3/8") x 56,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 2.000 |
| HTX-LW3-095x056-YW | 76140 | 9,5 (3/8") x 56,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 2.000 |
| HTX-LW3-127x028-WE | 76253 | 12,7 (1/2") x 28,00 | white | 5,00 - 11,00 | 10,0 - 35,0 | 2 | 2.000 |
| HTX-LW3-127x028-YW | 76153 | 12,7 (1/2") x 28,00 | yellow | 5,00 - 11,00 | 10,0 - 35,0 | 2 | 2.000 |
| HTX-LW3-127x056-WE | 76250 | 12,7 (1/2") x 56,00 | white | 5,00 - 11,00 | 10,0 - 35,0 | 1 | 1.000 |
| HTX-LW3-127x056-YW | 76150 | 12,7 (1/2") x 56,00 | yellow | 5,00 - 11,00 | 10,0 - 35,0 | 1 | 1.000 |
| HTX-LW3-190x028-WE | 76263 | 19,0 (3/4") x 28,00 | white | 7,00 - 17,00 | 25,0 - 50,0 | 2 | 2.000 |
| HTX-LW3-190x028-YW | 76163 | 19,0 (3/4") x 28,00 | yellow | 7,00 - 17,00 | 25,0 - 50,0 | 2 | 2.000 |
| HTX-LW3-190x056-WE | 76260 | 19,0 (3/4") x 56,00 | white | 7,00 - 17,00 | 25,0 - 50,0 | 1 | 1.000 |
| HTX-LW3-190x056-YW | 76160 | 19,0 (3/4") x 56,00 | yellow | 7,00 - 17,00 | 25,0 - 50,0 | 1 | 1.000 |
| HTX-LW3-254x056-WE | 76270 | 25,4 (1,0") x 56,00 | white | 9,00 - 23,00 | 50,0 - 120,0 | 1 | 500 |
| HTX-LW3-254x056-YW | 76170 | 25,4 (1,0") x 56,00 | yellow | 9,00 - 23,00 | 50,0 - 120,0 | 1 | 500 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service
