Print heat shrink tube
Shrink sleeve printing made easy | ➡️ Whether you want to print yourself with a labeling device or make use of our printing service.
Cable labeling > Labeling heat shrink tubing
Halogen-free
Shrinkage ratio 2:1
EN 45545 compliant
EN 50343 compliant
Product description
Product description

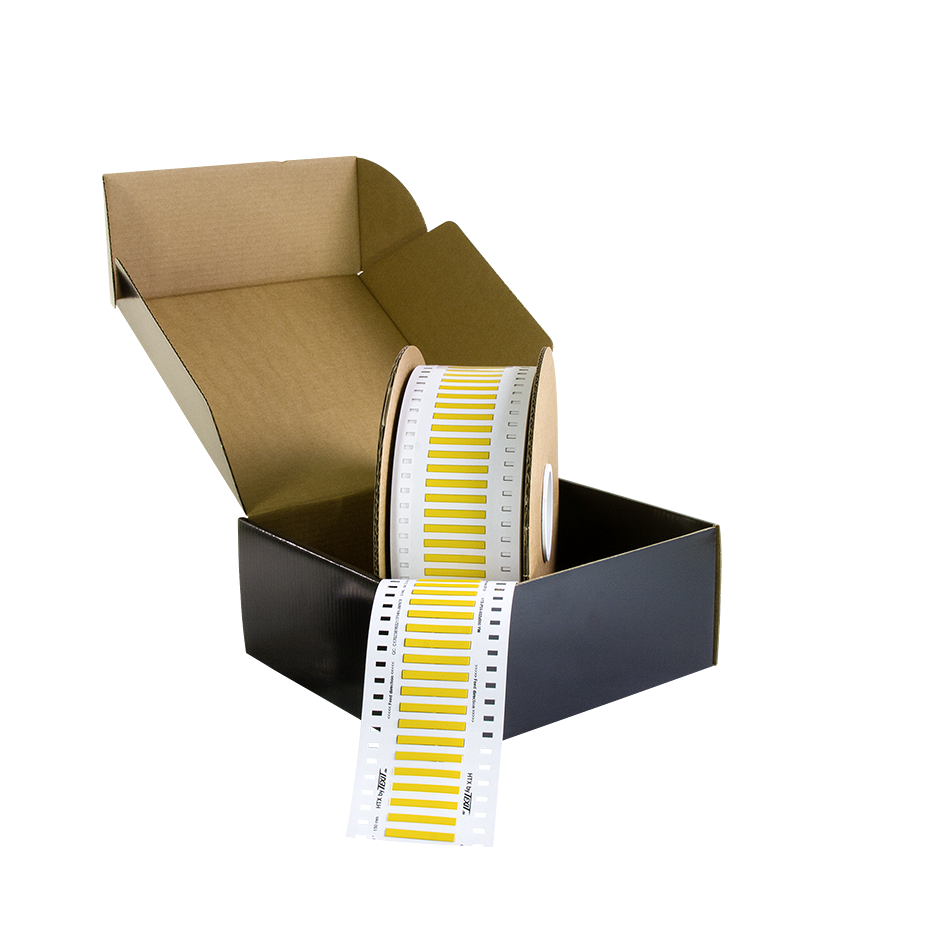

The HTX-PS0 shrink sleeve markers have the same properties as the HTX-RS0 markers and therefore also meet the strict requirements of the European rail vehicle industry, among others. The marking tube is attached to the paper carrier in such a way that one-sided marking is possible with the TX4/300 or TX4M/300 printer. The HTX-PS0 markers are supplied as standard on a space-optimized cardboard reel with a maximum outer diameter of 300 mm, which can be disposed of in an environmentally friendly manner after use. For optimum printing results, we recommend using our high-quality ribbons. For more detailed information on compliance with EN 45545 and EN 50343, please refer to the data sheet.
Note: When using the TX4/300 or TX4M/300 printer, an additional unwinder is required as a material feeder, as the design cannot be accommodated in the printer.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size unshrunk, diameter in mm (inch) x length in mm | Colour |
|
|
|
|
|---|---|---|---|---|---|---|---|
| HTX-PS0-032x025-WE | 67212 | 3,2 (1/8″) x 25,00 | white | 1,70 - 2,80 | 0,75 - 1,00 | 2 | 10.000 |
| HTX-PS0-032x025-YW | 67112 | 3,2 (1/8″) x 25,00 | yellow | 1,70 - 2,80 | 0,75 - 1,00 | 2 | 10.000 |
| HTX-PS0-032x050-WE | 67210 | 3,2 (1/8″) x 50,00 | white | 1,70 - 2,80 | 0,75 - 1,00 | 1 | 5.000 |
| HTX-PS0-032x050-YW | 67110 | 3,2 (1/8″) x 50,00 | yellow | 1,70 - 2,80 | 0,75 - 1,00 | 1 | 5.000 |
| HTX-PS0-048x025-WE | - | 4,8 (3/16) x 25,00 | white | 2,80 - 4,00 | 1,00 - 2,50 | 2 | 10.000 |
| HTX-PS0-048x025-YW | 67122 | 4,8 (3/16) x 25,00 | yellow | 2,80 - 4,00 | 1,00 - 2,50 | 2 | 10.000 |
| HTX-PS0-048x050-WE | 67220 | 4,8 (3/16) x 50,00 | white | 2,80 - 4,00 | 1,00 - 2,50 | 1 | 5.000 |
| HTX-PS0-048x050-YW | 67120 | 4,8 (3/16) x 50,00 | yellow | 2,80 - 4,00 | 1,00 - 2,50 | 1 | 5.000 |
| HTX-PS0-064x025-WE | 67232 | 6,4 (1/4) x 25,00 | white | 4,00 - 5,50 | 4,00 - 6,00 | 2 | 6.000 |
| HTX-PS0-064x025-YW | 67132 | 6,4 (1/4) x 25,00 | yellow | 4,00 - 5,50 | 4,00 - 6,00 | 2 | 6.000 |
| HTX-PS0-064x050-WE | 67230 | 6,4 (1/4) x 50,00 | white | 4,00 - 5,50 | 4,00 - 6,00 | 1 | 3.000 |
| HTX-PS0-064x050-YW | 67130 | 6,4 (1/4) x 50,00 | yellow | 4,00 - 5,50 | 4,00 - 6,00 | 1 | 3.000 |
| HTX-PS0-095x025-WE | 67242 | 9,5 (3/8) x 25,00 | white | 5,50 - 8,00 | 10,00 - 16,00 | 2 | 4.000 |
| HTX-PS0-095x025-YW | 67142 | 9,5 (3/8) x 25,00 | yellow | 5,50 - 8,00 | 10,00 - 16,00 | 2 | 4.000 |
| HTX-PS0-095x050-WE | 67240 | 9,5 (3/8) x 50,00 | white | 5,50 - 8,00 | 10,00 - 16,00 | 1 | 2.000 |
| HTX-PS0-095x050-YW | 67140 | 9,5 (3/8) x 50,00 | yellow | 5,50 - 8,00 | 10,00 - 16,00 | 1 | 2.000 |
| HTX-PS0-127x025-WE | 67252 | 12,7 (1/2) x 25,00 | white | 8,00 - 11,00 | 25,00 - 35,00 | 2 | 3.000 |
| HTX-PS0-127x025-YW | 67152 | 12,7 (1/2) x 25,00 | yellow | 8,00 - 11,00 | 25,00 - 35,00 | 2 | 3.000 |
| HTX-PS0-127x050-WE | 67250 | 12,7 (1/2) x 50,00 | white | 8,00 - 11,00 | 25,00 - 35,00 | 1 | 1.500 |
| HTX-PS0-127x050-YW | 67150 | 12,7 (1/2) x 50,00 | yellow | 8,00 - 11,00 | 25,00 - 35,00 | 1 | 1.500 |
| HTX-PS0-190x025-WE | 67262 | 19,0 (3/4) x 25,00 | white | 11,0 - 17,0 | 25,00 - 35,00 | 2 | 3.000 |
| HTX-PS0-190x025-YW | 67162 | 19,0 (3/4) x 25,00 | yellow | 11,0 - 17,0 | 25,00 - 35,00 | 2 | 3.000 |
| HTX-PS0-190x050-WE | - | 19,0 (3/4) x 50,00 | white | 11,0 - 17,0 | 25,00 - 35,00 | 1 | 1.500 |
| HTX-PS0-190x050-YW | 67160 | 19,0 (3/4) x 50,00 | yellow | 11,0 - 17,0 | 25,00 - 35,00 | 1 | 1.500 |
| HTX-PS0-254x050-WE | - | 25,4 (1,0) x 50,00 | white | 15,0- 23,0 | 50,0 - 120,0 | 1 | 1.000 |
| HTX-PS0-254x050-YW | 67170 | 25,4 (1,0) x 50,00 | yellow | 15,0- 23,0 | 50,0 - 120,0 | 1 | 1.000 |
| HTX-PS0-381x050-WE | - | 38,1 (1,5) x 50,00 | white | 23,0 - 35,0 | 120,0 - 240,0 | 1 | 600 |
| HTX-PS0-381x050-YW | 67180 | 38,1 (1,5) x 50,00 | yellow | 23,0 - 35,0 | 120,0 - 240,0 | 1 | 600 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service

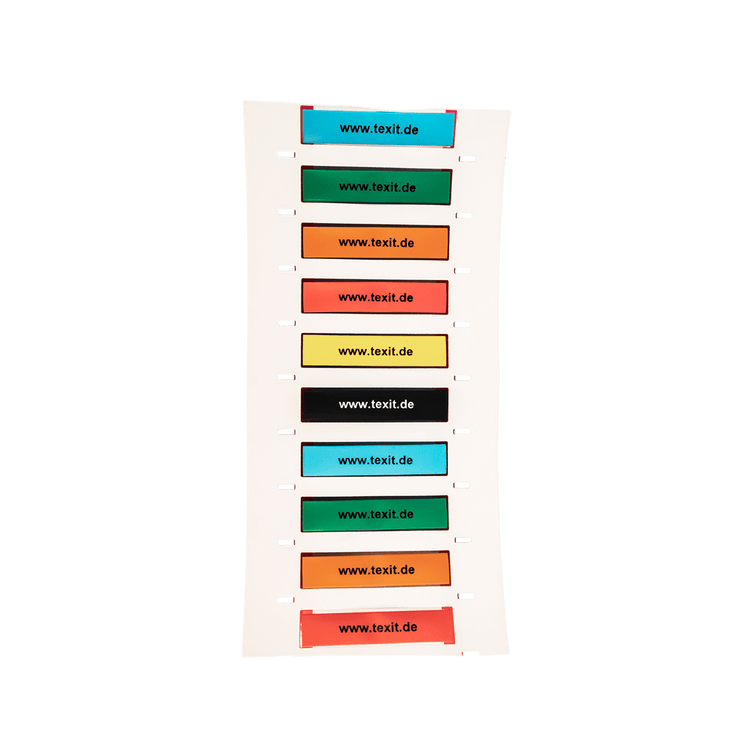

HTX-PS0 Heat shrink marker, assembled
HTX-PS0
Heat shrink marker,
assembled
:
:
:
:
:
3-5 working days standard delivery
Availability for collections could not be loaded
Product description
Product description
The HTX-PS0 shrink sleeve markers have the same properties as the HTX-RS0 markers and therefore also meet the strict requirements of the European rail vehicle industry, among others. The marking tube is attached to the paper carrier in such a way that one-sided marking is possible with the TX4/300 or TX4M/300 printer. The HTX-PS0 markers are supplied as standard on a space-optimized cardboard reel with a maximum outer diameter of 300 mm, which can be disposed of in an environmentally friendly manner after use. For optimum printing results, we recommend using our high-quality ribbons. For more detailed information on compliance with EN 45545 and EN 50343, please refer to the data sheet.
Note: When using the TX4/300 or TX4M/300 printer, an additional unwinder is required as a material feeder, as the design cannot be accommodated in the printer.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size unshrunk, diameter in mm (inch) x length in mm | Colour |
|
|
|
|
|---|---|---|---|---|---|---|---|
| HTX-PS0-032x025-WE | 67212 | 3,2 (1/8″) x 25,00 | white | 1,70 - 2,80 | 0,75 - 1,00 | 2 | 10.000 |
| HTX-PS0-032x025-YW | 67112 | 3,2 (1/8″) x 25,00 | yellow | 1,70 - 2,80 | 0,75 - 1,00 | 2 | 10.000 |
| HTX-PS0-032x050-WE | 67210 | 3,2 (1/8″) x 50,00 | white | 1,70 - 2,80 | 0,75 - 1,00 | 1 | 5.000 |
| HTX-PS0-032x050-YW | 67110 | 3,2 (1/8″) x 50,00 | yellow | 1,70 - 2,80 | 0,75 - 1,00 | 1 | 5.000 |
| HTX-PS0-048x025-WE | - | 4,8 (3/16) x 25,00 | white | 2,80 - 4,00 | 1,00 - 2,50 | 2 | 10.000 |
| HTX-PS0-048x025-YW | 67122 | 4,8 (3/16) x 25,00 | yellow | 2,80 - 4,00 | 1,00 - 2,50 | 2 | 10.000 |
| HTX-PS0-048x050-WE | 67220 | 4,8 (3/16) x 50,00 | white | 2,80 - 4,00 | 1,00 - 2,50 | 1 | 5.000 |
| HTX-PS0-048x050-YW | 67120 | 4,8 (3/16) x 50,00 | yellow | 2,80 - 4,00 | 1,00 - 2,50 | 1 | 5.000 |
| HTX-PS0-064x025-WE | 67232 | 6,4 (1/4) x 25,00 | white | 4,00 - 5,50 | 4,00 - 6,00 | 2 | 6.000 |
| HTX-PS0-064x025-YW | 67132 | 6,4 (1/4) x 25,00 | yellow | 4,00 - 5,50 | 4,00 - 6,00 | 2 | 6.000 |
| HTX-PS0-064x050-WE | 67230 | 6,4 (1/4) x 50,00 | white | 4,00 - 5,50 | 4,00 - 6,00 | 1 | 3.000 |
| HTX-PS0-064x050-YW | 67130 | 6,4 (1/4) x 50,00 | yellow | 4,00 - 5,50 | 4,00 - 6,00 | 1 | 3.000 |
| HTX-PS0-095x025-WE | 67242 | 9,5 (3/8) x 25,00 | white | 5,50 - 8,00 | 10,00 - 16,00 | 2 | 4.000 |
| HTX-PS0-095x025-YW | 67142 | 9,5 (3/8) x 25,00 | yellow | 5,50 - 8,00 | 10,00 - 16,00 | 2 | 4.000 |
| HTX-PS0-095x050-WE | 67240 | 9,5 (3/8) x 50,00 | white | 5,50 - 8,00 | 10,00 - 16,00 | 1 | 2.000 |
| HTX-PS0-095x050-YW | 67140 | 9,5 (3/8) x 50,00 | yellow | 5,50 - 8,00 | 10,00 - 16,00 | 1 | 2.000 |
| HTX-PS0-127x025-WE | 67252 | 12,7 (1/2) x 25,00 | white | 8,00 - 11,00 | 25,00 - 35,00 | 2 | 3.000 |
| HTX-PS0-127x025-YW | 67152 | 12,7 (1/2) x 25,00 | yellow | 8,00 - 11,00 | 25,00 - 35,00 | 2 | 3.000 |
| HTX-PS0-127x050-WE | 67250 | 12,7 (1/2) x 50,00 | white | 8,00 - 11,00 | 25,00 - 35,00 | 1 | 1.500 |
| HTX-PS0-127x050-YW | 67150 | 12,7 (1/2) x 50,00 | yellow | 8,00 - 11,00 | 25,00 - 35,00 | 1 | 1.500 |
| HTX-PS0-190x025-WE | 67262 | 19,0 (3/4) x 25,00 | white | 11,0 - 17,0 | 25,00 - 35,00 | 2 | 3.000 |
| HTX-PS0-190x025-YW | 67162 | 19,0 (3/4) x 25,00 | yellow | 11,0 - 17,0 | 25,00 - 35,00 | 2 | 3.000 |
| HTX-PS0-190x050-WE | - | 19,0 (3/4) x 50,00 | white | 11,0 - 17,0 | 25,00 - 35,00 | 1 | 1.500 |
| HTX-PS0-190x050-YW | 67160 | 19,0 (3/4) x 50,00 | yellow | 11,0 - 17,0 | 25,00 - 35,00 | 1 | 1.500 |
| HTX-PS0-254x050-WE | - | 25,4 (1,0) x 50,00 | white | 15,0- 23,0 | 50,0 - 120,0 | 1 | 1.000 |
| HTX-PS0-254x050-YW | 67170 | 25,4 (1,0) x 50,00 | yellow | 15,0- 23,0 | 50,0 - 120,0 | 1 | 1.000 |
| HTX-PS0-381x050-WE | - | 38,1 (1,5) x 50,00 | white | 23,0 - 35,0 | 120,0 - 240,0 | 1 | 600 |
| HTX-PS0-381x050-YW | 67180 | 38,1 (1,5) x 50,00 | yellow | 23,0 - 35,0 | 120,0 - 240,0 | 1 | 600 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service
