Print heat shrink tube
Shrink sleeve printing made easy | ➡️ Whether you want to print yourself with a labeling device or make use of our printing service.
Cable labeling > Labeling heat shrink tubing
Halogen-free
Shrinkage ratio 2:1
EN 45545 compliant
EN 50343 compliant
Product description
Product description

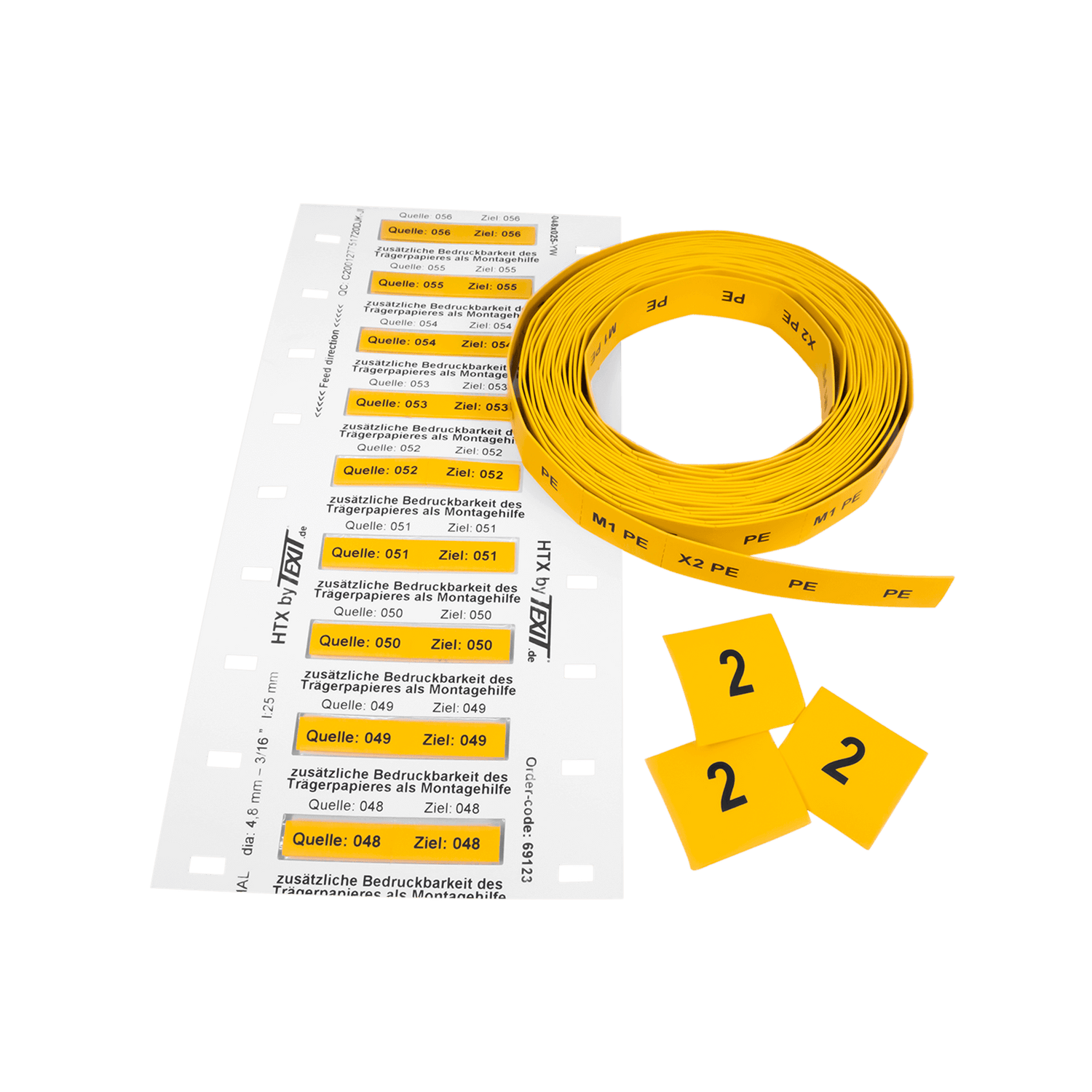

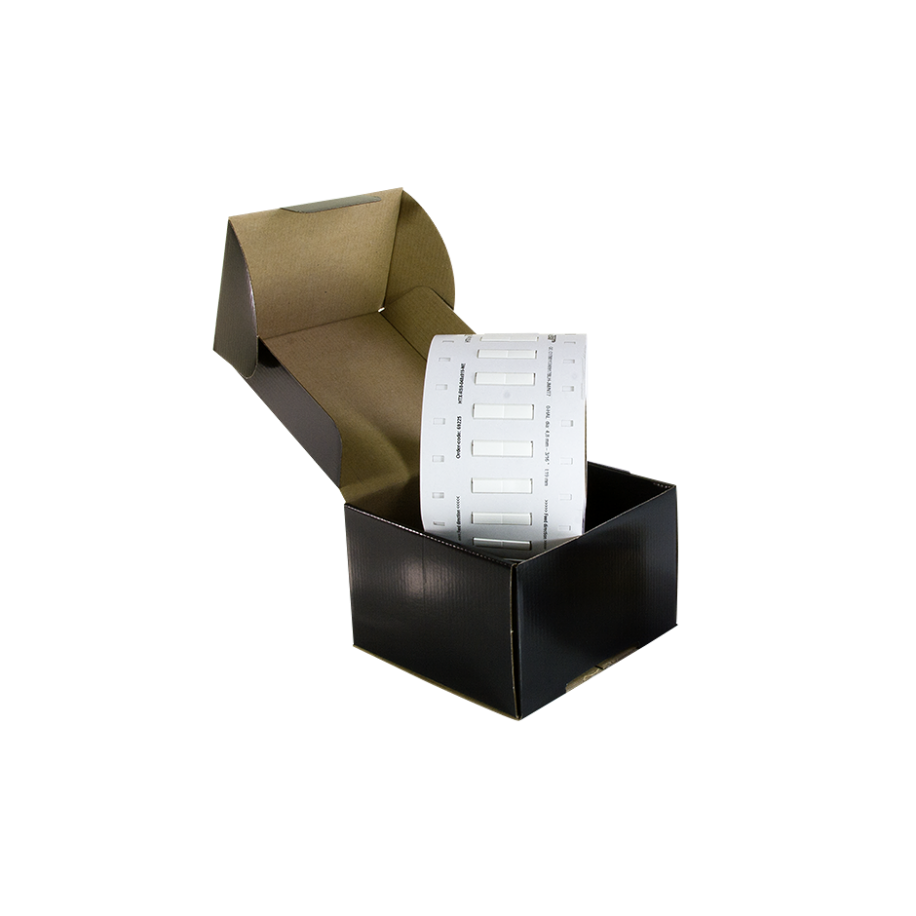

The halogen-free HTX-RS0 shrink sleeve markers with a shrink ratio of 2:1 meet the most important European railroad standards in terms of fire behavior, smoke gas development, toxicity and marking durability. The arrangement of the HTX-RS0 shrink sleeve markers on a roll and the additional printability of the backing paper make it easier to assign and process the sleeving when assembling the cables. More detailed information on compliance with EN 45545 and EN 50343 can be found in the data sheet.

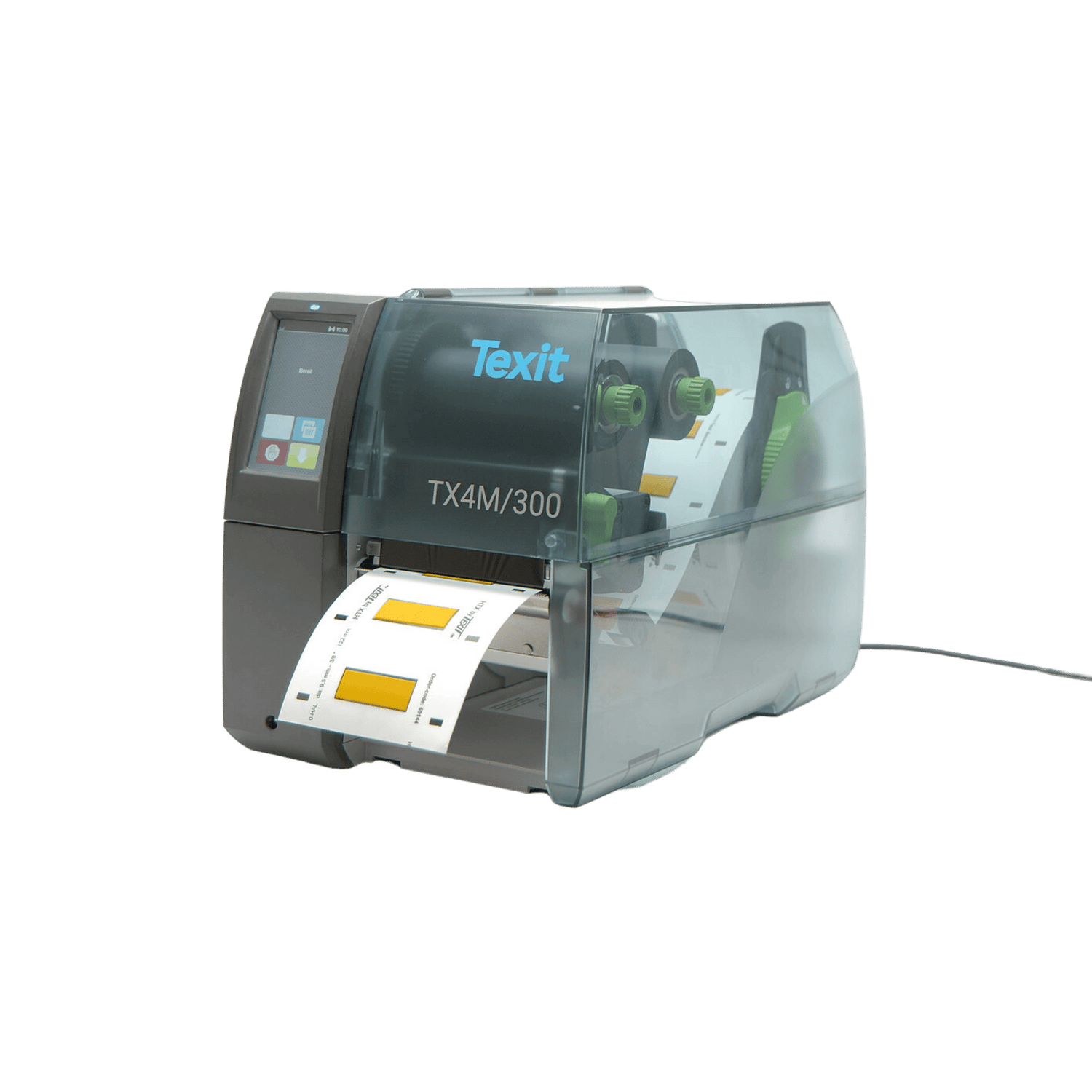

All TEXIT thermal transfer printers can accept the HTX-RS0 rolls. For best results, we recommend using our matching ribbons.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size unshrunk, diameter in mm (inch) x length in mm | Colour |
|
|
|
|
|---|---|---|---|---|---|---|---|
| HTX-RS0-024x022-WE | 69204 | 2,40 (1/10") x 22,00 | white | 1,40 - 2,00 | 0,25 - 0,75 | 2 | 2.000 |
| HTX-RS0-024x022-YW | 69104 | 2,40 (1/10") x 22,00 | yellow | 1,40 - 2,00 | 0,25 - 0,75 | 2 | 2.000 |
| HTX-RS0-024x044-WE | 69201 | 2,40 (1/10") x 44,00 | white | 1,40 - 2,00 | 0,25 - 0,75 | 1 | 1.000 |
| HTX-RS0-024x044-YW | 69101 | 2,40 (1/10") x 44,00 | yellow | 1,40 - 2,00 | 0,25 - 0,75 | 1 | 1.000 |
| HTX-RS0-032x022-WE | 69214 | 3,20 (1/8") x 22,00 | white | 1,80 - 2,80 | 0,75 - 1,00 | 2 | 2.000 |
| HTX-RS0-032x022-YW | 69114 | 3,20 (1/8") x 22,00 | yellow | 1,80 - 2,80 | 0,75 - 1,00 | 2 | 2.000 |
| HTX-RS0-032x044-WE | 69211 | 3,20 (1/8") x 44,00 | white | 1,80 - 2,80 | 0,75 - 1,00 | 1 | 1.000 |
| HTX-RS0-032x044-YW | 69111 | 3,20 (1/8") x 44,00 | yellow | 1,80 - 2,80 | 0,75 - 1,00 | 1 | 1.000 |
| HTX-RS0-048x022-WE | 69224 | 4,80 (3/16") x 22,00 | white | 2,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
| HTX-RS0-048x022-YW | 69124 | 4,80 (3/16") x 22,00 | yellow | 2,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
| HTX-RS0-048x044-WE | 69221 | 4,80 (3/16") x 44,00 | white | 2,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
| HTX-RS0-048x044-YW | 69121 | 4,80 (3/16") x 44,00 | yellow | 2,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
| HTX-RS0-064x022-WE | 69234 | 6,40 (1/4") x 22,00 | white | 4,20 - 5,80 | 4,00 - 6,00 | 2 | 2.000 |
| HTX-RS0-064x022-YW | 69134 | 6,40 (1/4") x 22,00 | yellow | 4,20 - 5,80 | 4,00 - 6,00 | 2 | 2.000 |
| HTX-RS0-064x044-WE | 69231 | 6,40 (1/4") x 44,00 | white | 4,20 - 5,80 | 4,00 - 6,00 | 1 | 1.000 |
| HTX-RS0-064x044-YW | 69131 | 6,40 (1/4") x 44,00 | yellow | 4,20 - 5,80 | 4,00 - 6,00 | 1 | 1.000 |
| HTX-RS0-095x022-WE | 69244 | 9,50 (3/8") x 22,00 | white | 5,80 - 8,00 | 10,00 - 16,00 | 2 | 1.000 |
| HTX-RS0-095x022-YW | 69144 | 9,50 (3/8") x 22,00 | yellow | 5,80 - 8,00 | 10,00 - 16,00 | 2 | 1.000 |
| HTX-RS0-095x044-WE | 69241 | 9,50 (3/8") x 44,00 | white | 5,80 - 8,00 | 10,00 - 16,00 | 1 | 500 |
| HTX-RS0-095x044-YW | 69141 | 9,50 (3/8") x 44,00 | yellow | 5,80 - 8,00 | 10,00 - 16,00 | 1 | 500 |
| HTX-RS0-127x022-WE | 69254 | 12,70 (1/2") x 22,00 | white | 8,00 - 11,00 | 25,00 - 35,00 | 2 | 1.000 |
| HTX-RS0-127x022-YW | 69154 | 12,70 (1/2") x 22,00 | yellow | 8,00 - 11,00 | 25,00 - 35,00 | 2 | 1.000 |
| HTX-RS0-127x044-WE | 69251 | 12,70 (1/2") x 44,00 | white | 8,00 - 11,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-127x044-YW | 69151 | 12,70 (1/2") x 44,00 | yellow | 8,00 - 11,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-190x022-WE | 69264 | 19,00 (3/4") x 22,00 | white | 11,00 - 17,00 | 25,00 - 35,00 | 2 | 1.000 |
| HTX-RS0-190x022-YW | 69164 | 19,00 (3/4") x 22,00 | yellow | 11,00 - 17,00 | 25,00 - 35,00 | 2 | 1.000 |
| HTX-RS0-190x038-WE | 69262 | 19,00 (3/4") x 38,00 | white | 11,00 - 17,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-190x038-YW | 69162 | 19,00 (3/4") x 38,00 | yellow | 11,00 - 17,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-190x044-WE | 69261 | 19,00 (3/4") x 44,00 | white | 11,00 - 17,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-190x044-YW | 69161 | 19,00 (3/4") x 44,00 | yellow | 11,00 - 17,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-254x038-WE | 69272 | 25,40 (1,0") x 38,00 | white | 17,00 - 23,00 | 50,00 - 120,00 | 1 | 320 |
| HTX-RS0-254x038-YW | 69172 | 25,40 (1,0") x 38,00 | yellow | 17,00 - 23,00 | 50,00 - 120,00 | 1 | 320 |
| HTX-RS0-254x050-WE | 69270 | 25,40 (1,0") x 50,00 | white | 17,00 - 23,00 | 50,00 - 120,00 | 1 | 320 |
| HTX-RS0-254x050-YW | 69170 | 25,40 (1,0") x 50,00 | yellow | 17,00 - 23,00 | 50,00 - 120,00 | 1 | 320 |
| HTX-RS0-381x050-WE | 69280 | 38,10 (1,5") x 50,00 | white | 21,00 - 35,00 | 120,0 - 240,0 | 1 | 100 |
| HTX-RS0-381x050-YW | 69180 | 38,10 (1,5") x 50,00 | yellow | 21,00 - 35,00 | 120,0 - 240,0 | 1 | 100 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service
HTX-RS0 Heat shrink marker, assembled
HTX-RS0
Heat shrink marker,
assembled
:
:
:
:
:
3-5 working days standard delivery
Availability for collections could not be loaded
Product description
Product description
The halogen-free HTX-RS0 shrink sleeve markers with a shrink ratio of 2:1 meet the most important European railroad standards in terms of fire behavior, smoke gas development, toxicity and marking durability. The arrangement of the HTX-RS0 shrink sleeve markers on a roll and the additional printability of the backing paper make it easier to assign and process the sleeving when assembling the cables. More detailed information on compliance with EN 45545 and EN 50343 can be found in the data sheet.
All TEXIT thermal transfer printers can accept the HTX-RS0 rolls. For best results, we recommend using our matching ribbons.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size unshrunk, diameter in mm (inch) x length in mm | Colour |
|
|
|
|
|---|---|---|---|---|---|---|---|
| HTX-RS0-024x022-WE | 69204 | 2,40 (1/10") x 22,00 | white | 1,40 - 2,00 | 0,25 - 0,75 | 2 | 2.000 |
| HTX-RS0-024x022-YW | 69104 | 2,40 (1/10") x 22,00 | yellow | 1,40 - 2,00 | 0,25 - 0,75 | 2 | 2.000 |
| HTX-RS0-024x044-WE | 69201 | 2,40 (1/10") x 44,00 | white | 1,40 - 2,00 | 0,25 - 0,75 | 1 | 1.000 |
| HTX-RS0-024x044-YW | 69101 | 2,40 (1/10") x 44,00 | yellow | 1,40 - 2,00 | 0,25 - 0,75 | 1 | 1.000 |
| HTX-RS0-032x022-WE | 69214 | 3,20 (1/8") x 22,00 | white | 1,80 - 2,80 | 0,75 - 1,00 | 2 | 2.000 |
| HTX-RS0-032x022-YW | 69114 | 3,20 (1/8") x 22,00 | yellow | 1,80 - 2,80 | 0,75 - 1,00 | 2 | 2.000 |
| HTX-RS0-032x044-WE | 69211 | 3,20 (1/8") x 44,00 | white | 1,80 - 2,80 | 0,75 - 1,00 | 1 | 1.000 |
| HTX-RS0-032x044-YW | 69111 | 3,20 (1/8") x 44,00 | yellow | 1,80 - 2,80 | 0,75 - 1,00 | 1 | 1.000 |
| HTX-RS0-048x022-WE | 69224 | 4,80 (3/16") x 22,00 | white | 2,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
| HTX-RS0-048x022-YW | 69124 | 4,80 (3/16") x 22,00 | yellow | 2,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
| HTX-RS0-048x044-WE | 69221 | 4,80 (3/16") x 44,00 | white | 2,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
| HTX-RS0-048x044-YW | 69121 | 4,80 (3/16") x 44,00 | yellow | 2,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
| HTX-RS0-064x022-WE | 69234 | 6,40 (1/4") x 22,00 | white | 4,20 - 5,80 | 4,00 - 6,00 | 2 | 2.000 |
| HTX-RS0-064x022-YW | 69134 | 6,40 (1/4") x 22,00 | yellow | 4,20 - 5,80 | 4,00 - 6,00 | 2 | 2.000 |
| HTX-RS0-064x044-WE | 69231 | 6,40 (1/4") x 44,00 | white | 4,20 - 5,80 | 4,00 - 6,00 | 1 | 1.000 |
| HTX-RS0-064x044-YW | 69131 | 6,40 (1/4") x 44,00 | yellow | 4,20 - 5,80 | 4,00 - 6,00 | 1 | 1.000 |
| HTX-RS0-095x022-WE | 69244 | 9,50 (3/8") x 22,00 | white | 5,80 - 8,00 | 10,00 - 16,00 | 2 | 1.000 |
| HTX-RS0-095x022-YW | 69144 | 9,50 (3/8") x 22,00 | yellow | 5,80 - 8,00 | 10,00 - 16,00 | 2 | 1.000 |
| HTX-RS0-095x044-WE | 69241 | 9,50 (3/8") x 44,00 | white | 5,80 - 8,00 | 10,00 - 16,00 | 1 | 500 |
| HTX-RS0-095x044-YW | 69141 | 9,50 (3/8") x 44,00 | yellow | 5,80 - 8,00 | 10,00 - 16,00 | 1 | 500 |
| HTX-RS0-127x022-WE | 69254 | 12,70 (1/2") x 22,00 | white | 8,00 - 11,00 | 25,00 - 35,00 | 2 | 1.000 |
| HTX-RS0-127x022-YW | 69154 | 12,70 (1/2") x 22,00 | yellow | 8,00 - 11,00 | 25,00 - 35,00 | 2 | 1.000 |
| HTX-RS0-127x044-WE | 69251 | 12,70 (1/2") x 44,00 | white | 8,00 - 11,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-127x044-YW | 69151 | 12,70 (1/2") x 44,00 | yellow | 8,00 - 11,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-190x022-WE | 69264 | 19,00 (3/4") x 22,00 | white | 11,00 - 17,00 | 25,00 - 35,00 | 2 | 1.000 |
| HTX-RS0-190x022-YW | 69164 | 19,00 (3/4") x 22,00 | yellow | 11,00 - 17,00 | 25,00 - 35,00 | 2 | 1.000 |
| HTX-RS0-190x038-WE | 69262 | 19,00 (3/4") x 38,00 | white | 11,00 - 17,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-190x038-YW | 69162 | 19,00 (3/4") x 38,00 | yellow | 11,00 - 17,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-190x044-WE | 69261 | 19,00 (3/4") x 44,00 | white | 11,00 - 17,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-190x044-YW | 69161 | 19,00 (3/4") x 44,00 | yellow | 11,00 - 17,00 | 25,00 - 35,00 | 1 | 500 |
| HTX-RS0-254x038-WE | 69272 | 25,40 (1,0") x 38,00 | white | 17,00 - 23,00 | 50,00 - 120,00 | 1 | 320 |
| HTX-RS0-254x038-YW | 69172 | 25,40 (1,0") x 38,00 | yellow | 17,00 - 23,00 | 50,00 - 120,00 | 1 | 320 |
| HTX-RS0-254x050-WE | 69270 | 25,40 (1,0") x 50,00 | white | 17,00 - 23,00 | 50,00 - 120,00 | 1 | 320 |
| HTX-RS0-254x050-YW | 69170 | 25,40 (1,0") x 50,00 | yellow | 17,00 - 23,00 | 50,00 - 120,00 | 1 | 320 |
| HTX-RS0-381x050-WE | 69280 | 38,10 (1,5") x 50,00 | white | 21,00 - 35,00 | 120,0 - 240,0 | 1 | 100 |
| HTX-RS0-381x050-YW | 69180 | 38,10 (1,5") x 50,00 | yellow | 21,00 - 35,00 | 120,0 - 240,0 | 1 | 100 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service
