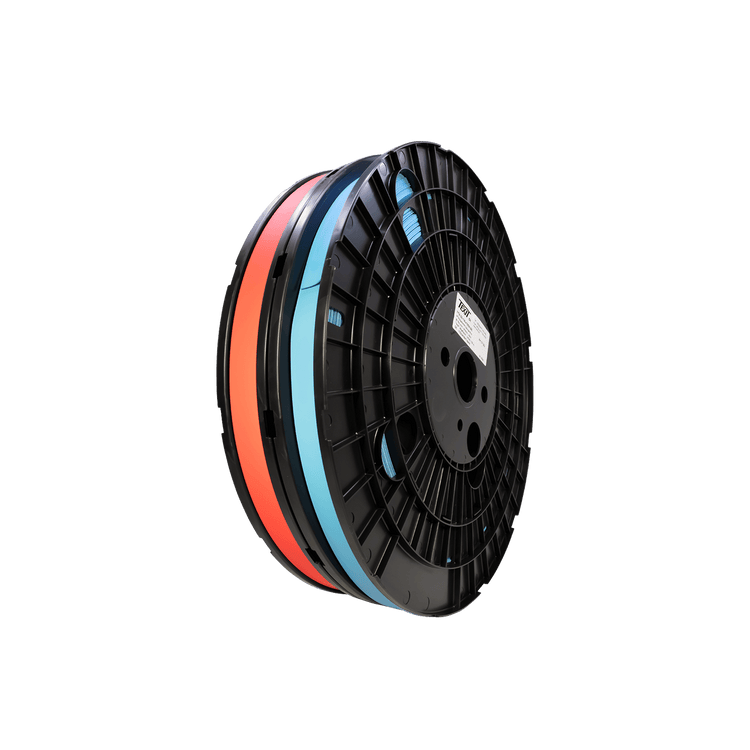

  • HTX-S0 Heat shrink markers, endless (jumbo roll), red and blue
Halogen-free
Shrinkage ratio 2:1
EN 45545 compliant
EN 50343 compliant
  • HTX-S0 Heat shrink marker, endless (jumbo roll), on heat shrink tubing
  • HTX-S0 Heat Shrink Tubing Marker Endless Jumbo Roll
  • HTX-S0 Heat shrink marker, endless (jumbo roll), yellow and white
  • HTX-S0 Heat shrink marker, endless (jumbo roll), yellow
  • HTX-S0 Heat shrink markers, endless (jumbo roll), red and blue
Jump to product information
1 from 6

Product description

The HTX-S0 shrink sleeve markers meet the highest requirements in terms of abrasion resistance and durability. The material used is a halogen-free, heat-shrinkable polyolefin with a shrink ratio of 2:1 and also complies with the marking standard DIN EN 50343. They are therefore particularly suitable for marking cables and wires in traffic engineering. More detailed information on compliance with EN 45545 and EN 50343 can be found in the data sheet.

As a continuous marker, the HTX-S0 heat shrink marker can be perforated or cut to any length using the TX4M/300 thermal transfer printer and the optional PCU400 perforation knife. Thanks to the jumbo rolls you get more markers per roll. For an optimal printing result we recommend the use of our high quality ribbons.

You can request sample products free of charge and without obligation via the enquiry button!

Size chart & item designations

Article description Article number Size unshrunk, diameter in mm (inch) Colour rec_au_average_mm rec_cross_section_mm2 meter_per_coil
HTX-S0-024x150M-WE 57302 2.4 (1/10") white 1,60 - 2,00 0.35 - 0.75 150
HTX-S0-024x150M-YW 57301 2.4 (1/10") yellow 1,60 - 2,00 0.35 - 0.75 150
HTX-S0-032x150M-WE 57312 3.2 (1/8") white 1,80 - 2,80 0.50 - 1.00 150
HTX-S0-032x150M-YW 57311 3.2 (1/8") yellow 1,80 - 2,80 0.50 - 1.00 150
HTX-S0-048x150M-WE 57322 4.8 (3/16") white 2,80 - 4,20 1.00 - 2.50 150
HTX-S0-048x150M-YW 57321 4.8 (3/16") yellow 2,80 - 4,20 1.00 - 2.50 150
HTX-S0-064x100M-WE 57332 6.4 (1/4") white 4,20 - 5,80 4.00 - 6.00 100
HTX-S0-064x100M-YW 57331 6.4 (1/4") yellow 4,20 - 5,80 4.00 - 6.00 100
HTX-S0-095x100M-WE 57342 9.5 (3/8") white 5,80 - 8,00 10.00 - 16.00 100
HTX-S0-095x100M-YW 57341 9.5 (3/8") yellow 5,80 - 8,00 10.00 - 16.00 100
HTX-S0-127x100M-WE 57352 12.7 (1/2") white 8,00 - 11,00 25.00 - 35.00 100
HTX-S0-127x100M-YW 57351 12.7 (1/2") yellow 8,00 - 11,00 25.00 - 35.00 100
HTX-S0-190x100M-WE 57362 19.0 (3/4") white 11,00 - 17,00 35.00 - 50.00 100
HTX-S0-190x100M-YW 57361 19.0 (3/4") yellow 11,00 - 17,00 35.00 - 50.00 100
HTX-S0-254x100M-WE 57272 25.4 (1.0") white 17,00 - 23,00 50.00 - 120.00 100
HTX-S0-254x100M-YW 57271 25.4 (1.0") yellow 17,00 - 23,00 50.00 - 120.00 100
HTX-S0-381x075M-WE 57389 38.1 (1.5") white 21,00 - 35,00 120.00 - 240.00 75
HTX-S0-381x075M-YW 57381 38.1 (1.5") yellow 21,00 - 35,00 120.00 - 240.00 75
Enlarge table
Article description Article number Size unshrunk, diameter in mm (inch) Colour rec_au_average_mm rec_cross_section_mm2 meter_per_coil
HTX-S0-024x150M-WE 57302 2.4 (1/10") white 1,60 - 2,00 0.35 - 0.75 150
HTX-S0-024x150M-YW 57301 2.4 (1/10") yellow 1,60 - 2,00 0.35 - 0.75 150
HTX-S0-032x150M-WE 57312 3.2 (1/8") white 1,80 - 2,80 0.50 - 1.00 150
HTX-S0-032x150M-YW 57311 3.2 (1/8") yellow 1,80 - 2,80 0.50 - 1.00 150
HTX-S0-048x150M-WE 57322 4.8 (3/16") white 2,80 - 4,20 1.00 - 2.50 150
HTX-S0-048x150M-YW 57321 4.8 (3/16") yellow 2,80 - 4,20 1.00 - 2.50 150
HTX-S0-064x100M-WE 57332 6.4 (1/4") white 4,20 - 5,80 4.00 - 6.00 100
HTX-S0-064x100M-YW 57331 6.4 (1/4") yellow 4,20 - 5,80 4.00 - 6.00 100
HTX-S0-095x100M-WE 57342 9.5 (3/8") white 5,80 - 8,00 10.00 - 16.00 100
HTX-S0-095x100M-YW 57341 9.5 (3/8") yellow 5,80 - 8,00 10.00 - 16.00 100
HTX-S0-127x100M-WE 57352 12.7 (1/2") white 8,00 - 11,00 25.00 - 35.00 100
HTX-S0-127x100M-YW 57351 12.7 (1/2") yellow 8,00 - 11,00 25.00 - 35.00 100
HTX-S0-190x100M-WE 57362 19.0 (3/4") white 11,00 - 17,00 35.00 - 50.00 100
HTX-S0-190x100M-YW 57361 19.0 (3/4") yellow 11,00 - 17,00 35.00 - 50.00 100
HTX-S0-254x100M-WE 57272 25.4 (1.0") white 17,00 - 23,00 50.00 - 120.00 100
HTX-S0-254x100M-YW 57271 25.4 (1.0") yellow 17,00 - 23,00 50.00 - 120.00 100
HTX-S0-381x075M-WE 57389 38.1 (1.5") white 21,00 - 35,00 120.00 - 240.00 75
HTX-S0-381x075M-YW 57381 38.1 (1.5") yellow 21,00 - 35,00 120.00 - 240.00 75
