Product description
Product description

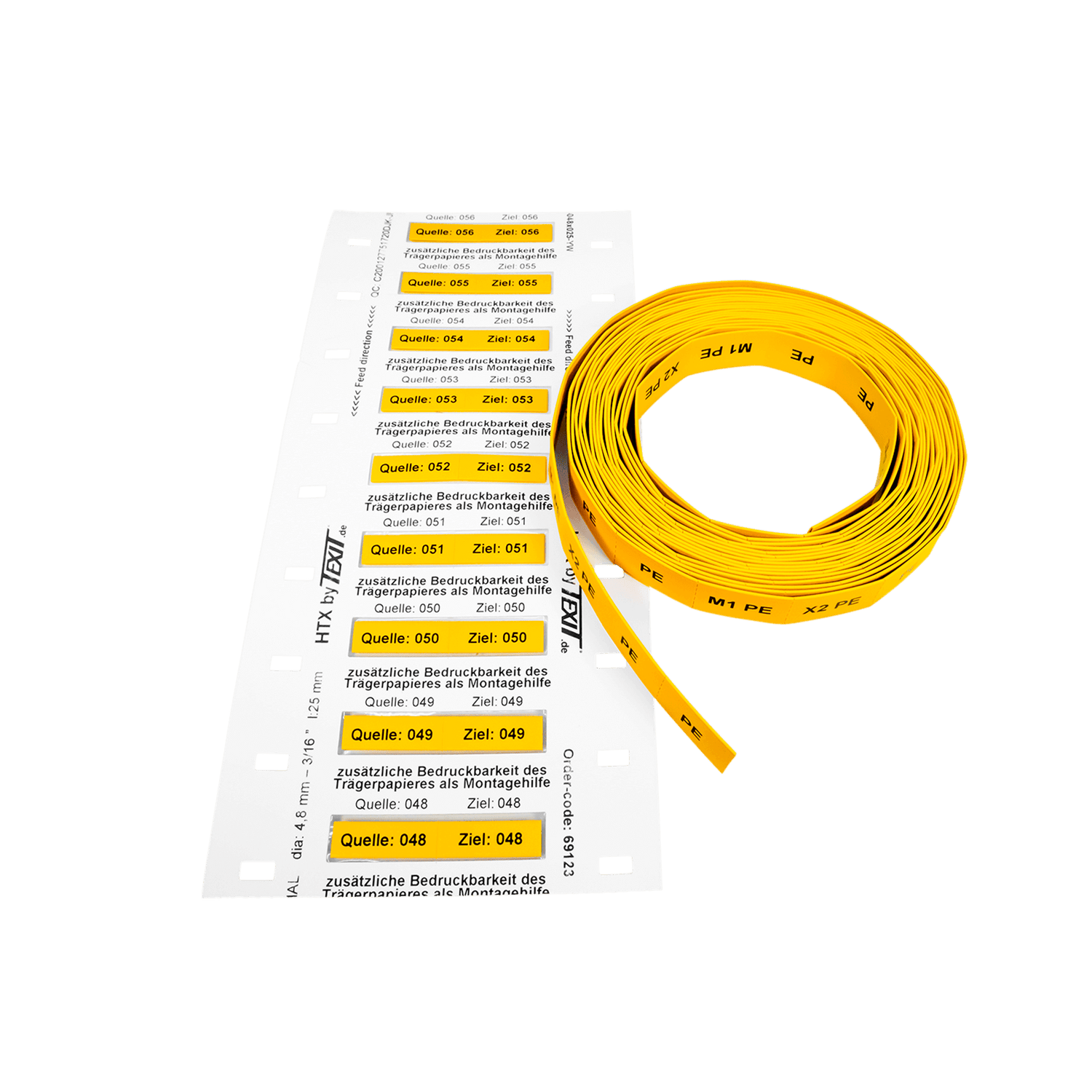

The base material of the HTX-S3 heat shrink markers is UL listed and meets the high requirements of the material properties for aerospace and defence technology, among others. Made from flame retardant, radiation crosslinked polyolefin with a shrink ratio of 3:1, the HTX-S3 heat shrink markers cover a wide range of cable diameters.

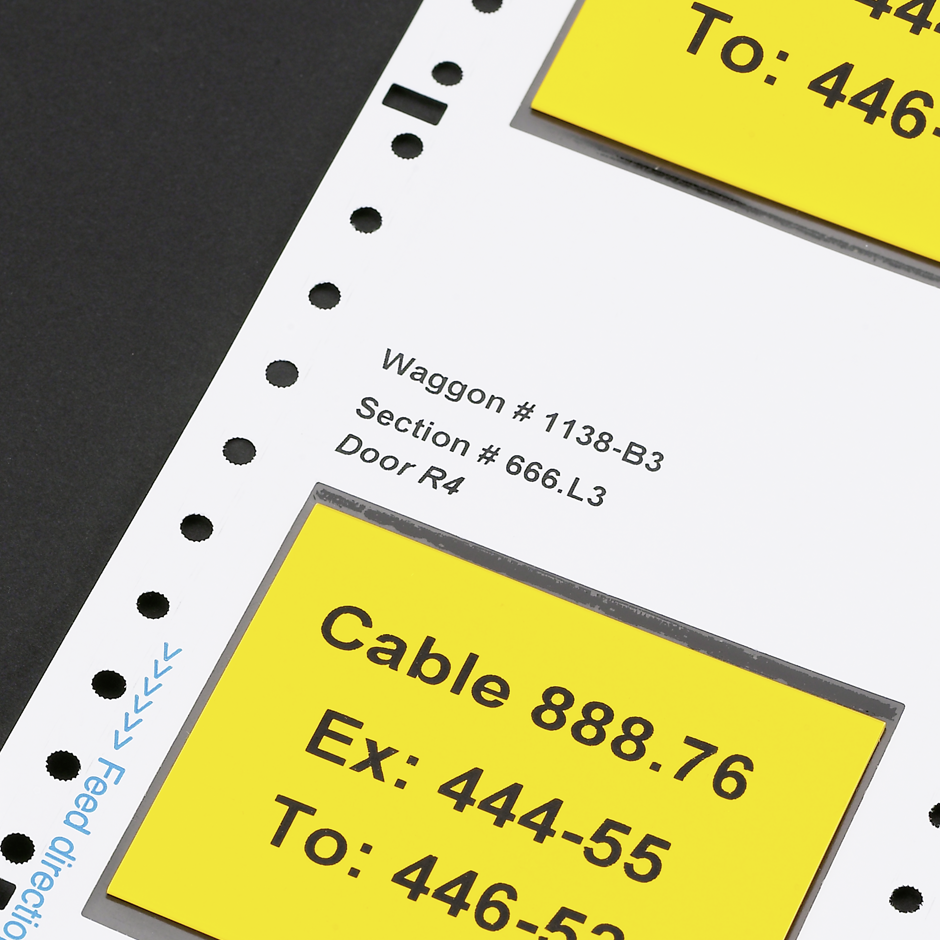

The arrangement of the HTX-S3 heat shrink markers has been designed in such a way that additional labelling is possible on the backing paper. This facilitates the assignment and processing of the markers when assembling the cables.

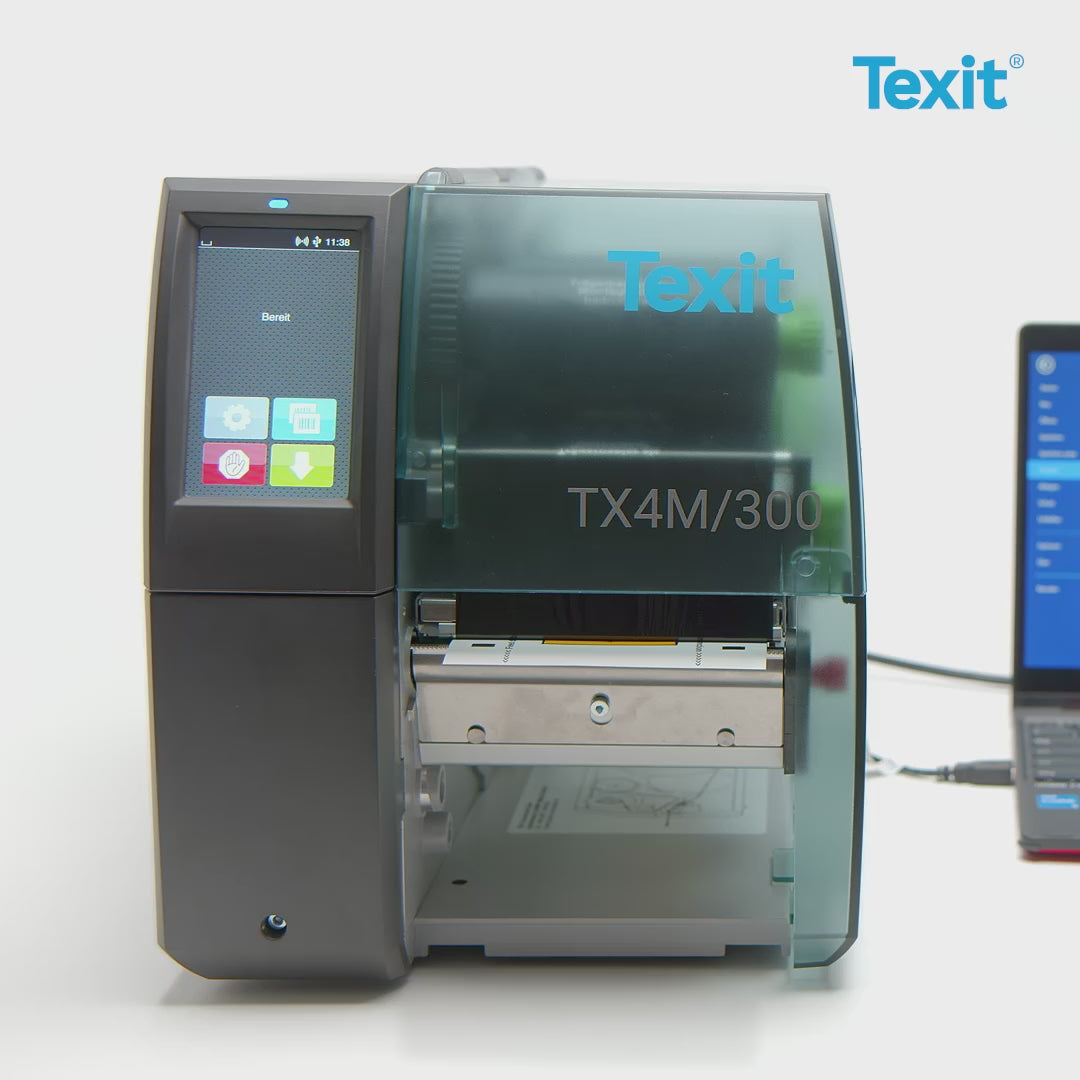

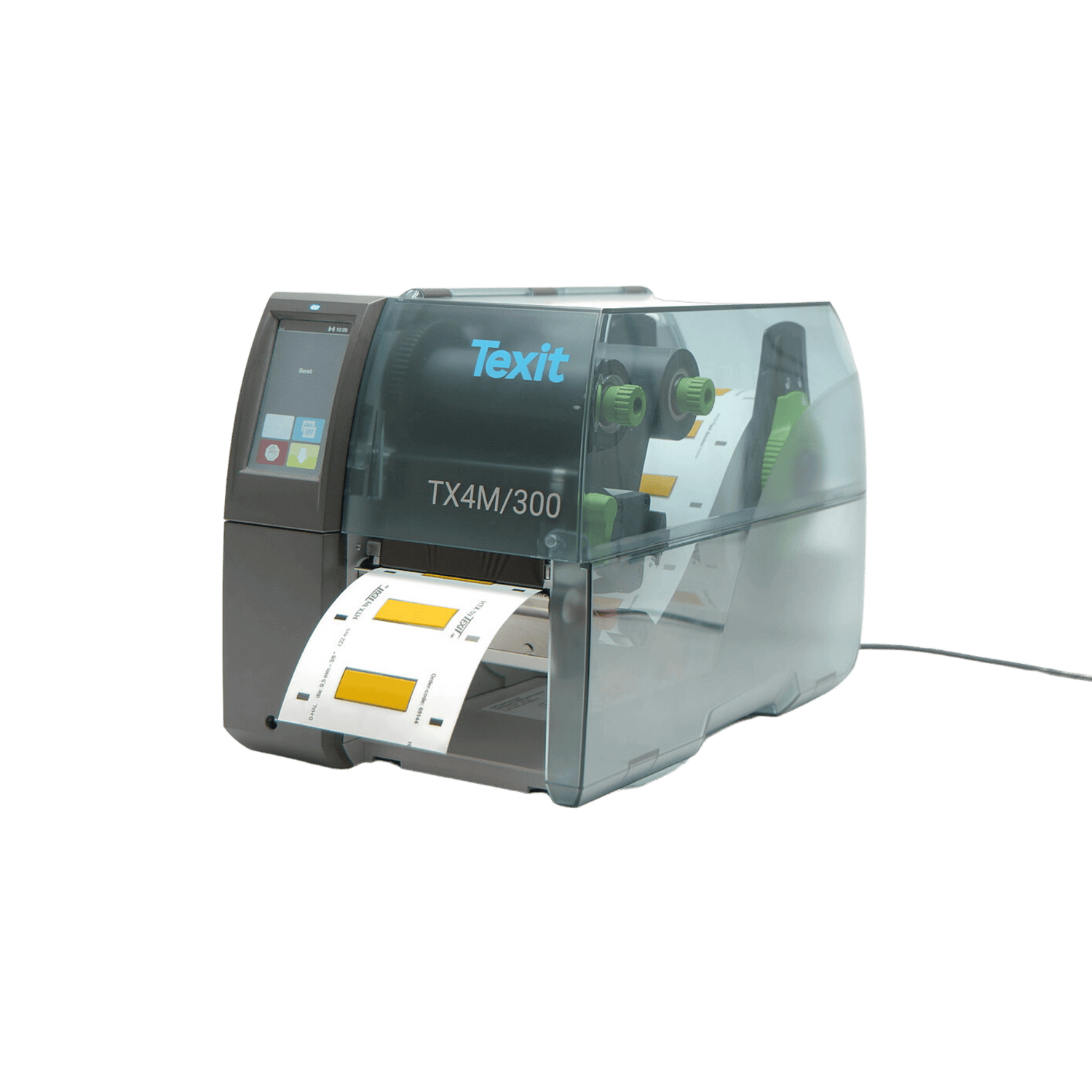

For an optimal printing result we recommend the use of our thermal transfer printer and thermal transfer ribbons.
You can request samples of this product free of charge and without obligation!
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size unshrunk, diameter in mm (inch) x length in mm | Colour |
|
|
|
|
|---|---|---|---|---|---|---|---|
| HTX-S3-030x019-WE | 59204 | 3,00 (1/8″) x 19,00 | white | 1,50 - 2,50 | 0,50 - 1,00 | 2 | 2.000 |
| HTX-S3-030x019-YW | - | 3,00 (1/8″) x 19,00 | yellow | 1,50 - 2,50 | 0,50 - 1,00 | 2 | 2.000 |
| HTX-S3-030x025-WE | 59202 | 3,00 (1/8") x 25,00 | white | 1,50 - 2,50 | 0,50 - 1,00 | 2 | 2.000 |
| HTX-S3-030x025-YW | 59102 | 3,00 (1/8") x 25,00 | yellow | 1,50 - 2,50 | 0,50 - 1,00 | 2 | 2.000 |
| HTX-S3-030x038-WE | 59201 | 3,00 (1/8") x 38,00 | white | 1,50 - 2,50 | 0,50 - 1,00 | 1 | 1.000 |
| HTX-S3-030x038-YW | - | 3,00 (1/8") x 38,00 | yellow | 1,50 - 2,50 | 0,50 - 1,00 | 1 | 1.000 |
| HTX-S3-030x050-WE | 59200 | 3,00 (1/8") x 50,00 | white | 1,50 - 2,50 | 0,50 - 1,00 | 1 | 1.000 |
| HTX-S3-030x050-YW | - | 3,00 (1/8") x 50,00 | yellow | 1,50 - 2,50 | 0,50 - 1,00 | 1 | 1.000 |
| HTX-S3-048x019-WE | 59214 | 4,80 (3/16") x 19,00 | white | 1,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
| HTX-S3-048x019-YW | - | 4,80 (3/16") x 19,00 | yellow | 1,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
| HTX-S3-048x025-WE | 59212 | 4,80 (3/16") x 25,00 | white | 1,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
| HTX-S3-048x025-YW | 59112 | 4,80 (3/16") x 25,00 | yellow | 1,80 - 4,20 | 1,00 - 2,50 | 2 | 2.000 |
| HTX-S3-048x038-WE | 59211 | 4,80 (3/16") x 38,00 | white | 1,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
| HTX-S3-048x038-YW | 59111 | 4,80 (3/16") x 38,00 | yellow | 1,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
| HTX-S3-048x050-WE | 59210 | 4,80 (3/16") x 50,00 | white | 1,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
| HTX-S3-048x050-YW | 59110 | 4,80 (3/16") x 50,00 | yellow | 1,80 - 4,20 | 1,00 - 2,50 | 1 | 1.000 |
| HTX-S3-060x019-WE | 59224 | 6,00 (1/4") x 19,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 2.000 |
| HTX-S3-060x019-YW | - | 6,00 (1/4") x 19,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 2.000 |
| HTX-S3-060x025-WE | 59222 | 6,00 (1/4") x 25,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 2.000 |
| HTX-S3-060x025-YW | 59122 | 6,00 (1/4") x 25,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 2 | 2.000 |
| HTX-S3-060x038-WE | 59221 | 6,00 (1/4") x 38,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 1.000 |
| HTX-S3-060x038-YW | 59121 | 6,00 (1/4") x 38,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 1.000 |
| HTX-S3-060x050-WE | 59220 | 6,00 (1/4") x 50,00 | white | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 1.000 |
| HTX-S3-060x050-YW | 59120 | 6,00 (1/4") x 50,00 | yellow | 2,50 - 5,50 | 1,00 - 6,00 | 1 | 1.000 |
| HTX-S3-090x019-WE | 59234 | 9,00 (3/8") x 19,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 1.000 |
| HTX-S3-090x019-YW | 59134 | 9,00 (3/8") x 19,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 1.000 |
| HTX-S3-090x025-WE | 59232 | 9,00 (3/8") x 25,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 1.000 |
| HTX-S3-090x025-YW | 59132 | 9,00 (3/8") x 25,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 2 | 1.000 |
| HTX-S3-090x038-WE | 59231 | 9,00 (3/8") x 38,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 500 |
| HTX-S3-090x038-YW | 59131 | 9,00 (3/8") x 38,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 500 |
| HTX-S3-090x050-WE | 59230 | 9,00 (3/8") x 50,00 | white | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 500 |
| HTX-S3-090x050-YW | 59130 | 9,00 (3/8") x 50,00 | yellow | 4,00 - 8,00 | 4,00 - 16,00 | 1 | 500 |
| HTX-S3-120x019-WE | - | 12,00 (1/2") x 19,00 | white | 5,00 - 11,00 | 10,00 - 35,00 | 2 | 1.000 |
| HTX-S3-120x019-YW | - | 12,00 (1/2") x 19,00 | yellow | 5,00 - 11,00 | 10,00 - 35,00 | 2 | 1.000 |
| HTX-S3-120x025-WE | 59242 | 12,00 (1/2") x 25,00 | white | 5,00 - 11,00 | 10,00 - 35,00 | 2 | 1.000 |
| HTX-S3-120x025-YW | 59142 | 12,00 (1/2") x 25,00 | yellow | 5,00 - 11,00 | 10,00 - 35,00 | 2 | 1.000 |
| HTX-S3-120x038-WE | - | 12,00 (1/2") x 38,00 | white | 5,00 - 11,00 | 10,00 - 35,00 | 1 | 500 |
| HTX-S3-120x038-YW | 59141 | 12,00 (1/2") x 38,00 | yellow | 5,00 - 11,00 | 10,00 - 35,00 | 1 | 500 |
| HTX-S3-120x050-WE | 59240 | 12,00 (1/2") x 50,00 | white | 5,00 - 11,00 | 10,00 - 35,00 | 1 | 500 |
| HTX-S3-120x050-YW | 59140 | 12,00 (1/2") x 50,00 | yellow | 5,00 - 11,00 | 10,00 - 35,00 | 1 | 500 |
| HTX-S3-180x025-WE | 59252 | 18,00 (3/4") x 25,00 | white | 7,00 - 17,00 | 25,00 - 50,00 | 2 | 1.000 |
| HTX-S3-180x025-YW | 59152 | 18,00 (3/4") x 25,00 | yellow | 7,00 - 17,00 | 25,00 - 50,00 | 2 | 1.000 |
| HTX-S3-180x038-WE | 59251 | 18,00 (3/4") x 38,00 | white | 7,00 - 17,00 | 25,00 - 50,00 | 1 | 500 |
| HTX-S3-180x038-YW | 59151 | 18,00 (3/4") x 38,00 | yellow | 7,00 - 17,00 | 25,00 - 50,00 | 1 | 500 |
| HTX-S3-180x050-WE | 59250 | 18,00 (3/4") x 50,00 | white | 7,00 - 17,00 | 25,00 - 50,00 | 1 | 500 |
| HTX-S3-180x050-YW | 59150 | 18,00 (3/4") x 50,00 | yellow | 7,00 - 17,00 | 25,00 - 50,00 | 1 | 500 |
| HTX-S3-240x038-WE | - | 24,00 (1,0") x 38,00 | white | 9,00 - 23,00 | 50,00 - 120,00 | 1 | 300 |
| HTX-S3-240x038-YW | 59161 | 24,00 (1,0") x 38,00 | yellow | 9,00 - 23,00 | 50,00 - 120,00 | 1 | 300 |
| HTX-S3-240x050-WE | 59260 | 24,00 (1,0") x 50,00 | white | 9,00 - 23,00 | 50,00 - 120,00 | 1 | 300 |
| HTX-S3-240x050-YW | 59160 | 24,00 (1,0") x 50,00 | yellow | 9,00 - 23,00 | 50,00 - 120,00 | 1 | 300 |
| HTX-S3-390x050-WE | 59270 | 39,00 (1,5") x 50,00 | white | 15,00 - 35,00 | 120,00 - 240,00 | 1 | 100 |
| HTX-S3-390x050-YW | 59170 | 39,00 (1,5") x 50,00 | yellow | 15,00 - 35,00 | 120,00 - 240,00 | 1 | 100 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service

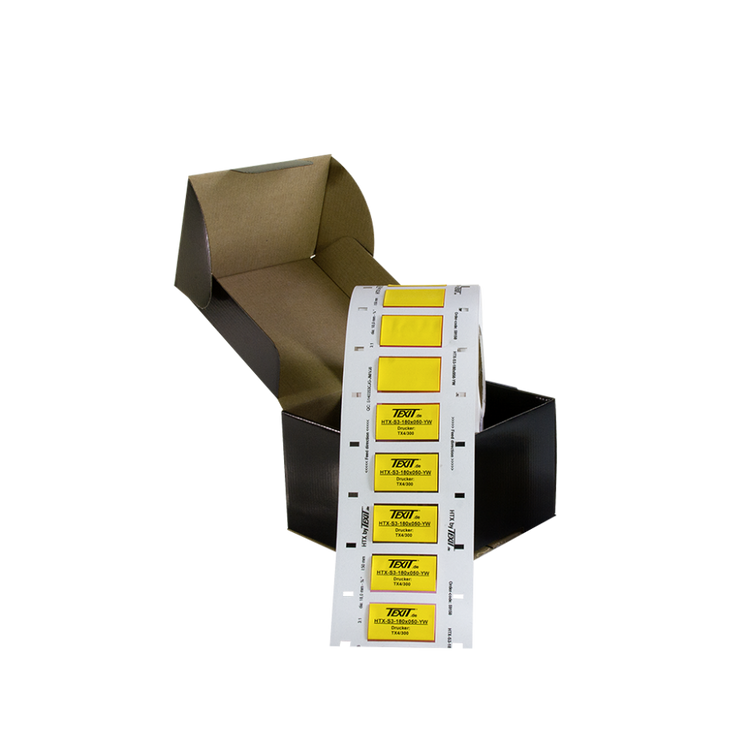

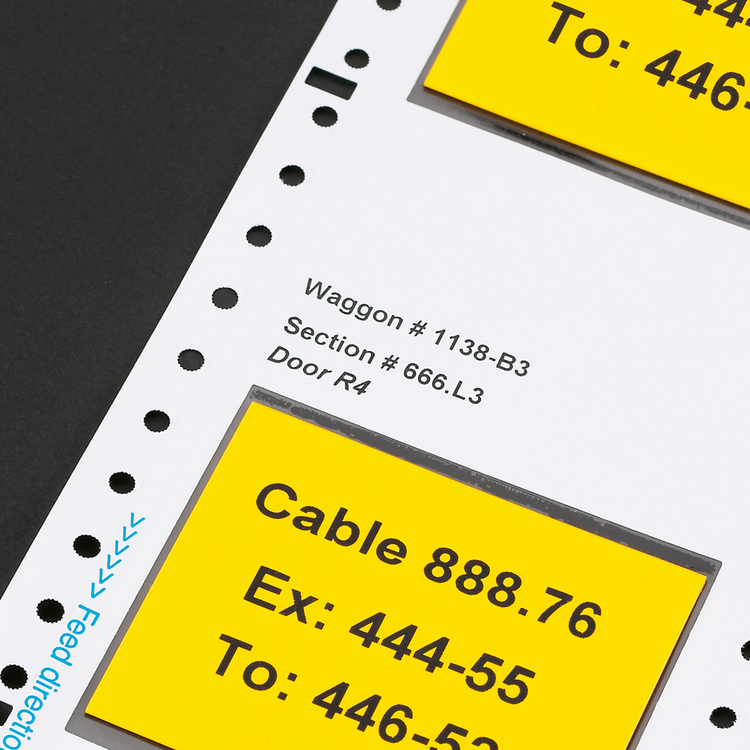

HTX-S3 Heat shrink marker, assembled
