Product description

With the LAM cable marking labels, Texit offers you a very versatile and independent marking system for labeling cables, cable bundles, control cabinets, machines, etc. The LAM laminate carriers can be labeled by hand or with pre-printed labels. By covering the film, the labeling becomes resistant to environmental influences. A halogen-free polypropylene is used as the material for both parts of the cable marking labels.

For this product you can request samples free of charge and without obligation.

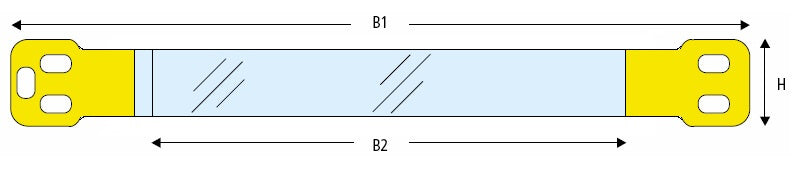

Size chart & item designations

Article description Article number Size Colour gr__e_font max_label size vpe_per_packaging
LKM-LS-048x010-YW 20993 70.00 mm wide x 10.00 mm high yellow 48.00 mm wide x 10.00 mm high 40.00 mm wide x 06.00 mm high 100
LKM-LS-055x015-YW 20994 100.00 mm wide x 15.00 mm high yellow 55.00 mm wide x 15.00 mm high 50.00 mm wide x 10.00 mm high 100
LKM-LS-085x015-YW 20995 130.00 mm wide x 15.00 mm high yellow 85.00 mm wide x 15.00 mm high 75.00 mm wide x 10.00 mm high 100
Enlarge table
Article description Article number Size Colour gr__e_font max_label size vpe_per_packaging
LKM-LS-048x010-YW 20993 70.00 mm wide x 10.00 mm high yellow 48.00 mm wide x 10.00 mm high 40.00 mm wide x 06.00 mm high 100
LKM-LS-055x015-YW 20994 100.00 mm wide x 15.00 mm high yellow 55.00 mm wide x 15.00 mm high 50.00 mm wide x 10.00 mm high 100
LKM-LS-085x015-YW 20995 130.00 mm wide x 15.00 mm high yellow 85.00 mm wide x 15.00 mm high 75.00 mm wide x 10.00 mm high 100

Cable Labelling Labels (LAM)
Cable Labeling plates (LAM)

:

:

:

:

:

:

Your contact

Drazen Milosevic +49 (0) 6071 928 4023
Product ADVICE REQUEST
Packaging units: 100
Colour: Yellow
Other colors available upon request.
3-5 working days standard delivery
Prices on request.

Product description

With the LAM cable marking labels, Texit offers you a very versatile and independent marking system for labeling cables, cable bundles, control cabinets, machines, etc. The LAM laminate carriers can be labeled by hand or with pre-printed labels. By covering the film, the labeling becomes resistant to environmental influences. A halogen-free polypropylene is used as the material for both parts of the cable marking labels.

For this product you can request samples free of charge and without obligation.

Size chart & item designations

Article description Article number Size Colour gr__e_font max_label size vpe_per_packaging
LKM-LS-048x010-YW 20993 70.00 mm wide x 10.00 mm high yellow 48.00 mm wide x 10.00 mm high 40.00 mm wide x 06.00 mm high 100
LKM-LS-055x015-YW 20994 100.00 mm wide x 15.00 mm high yellow 55.00 mm wide x 15.00 mm high 50.00 mm wide x 10.00 mm high 100
LKM-LS-085x015-YW 20995 130.00 mm wide x 15.00 mm high yellow 85.00 mm wide x 15.00 mm high 75.00 mm wide x 10.00 mm high 100
Enlarge table
Article description Article number Size Colour gr__e_font max_label size vpe_per_packaging
LKM-LS-048x010-YW 20993 70.00 mm wide x 10.00 mm high yellow 48.00 mm wide x 10.00 mm high 40.00 mm wide x 06.00 mm high 100
LKM-LS-055x015-YW 20994 100.00 mm wide x 15.00 mm high yellow 55.00 mm wide x 15.00 mm high 50.00 mm wide x 10.00 mm high 100
LKM-LS-085x015-YW 20995 130.00 mm wide x 15.00 mm high yellow 85.00 mm wide x 15.00 mm high 75.00 mm wide x 10.00 mm high 100
20993, 20994, 20995,

What our customers say:

Cable Labeling Labels Features

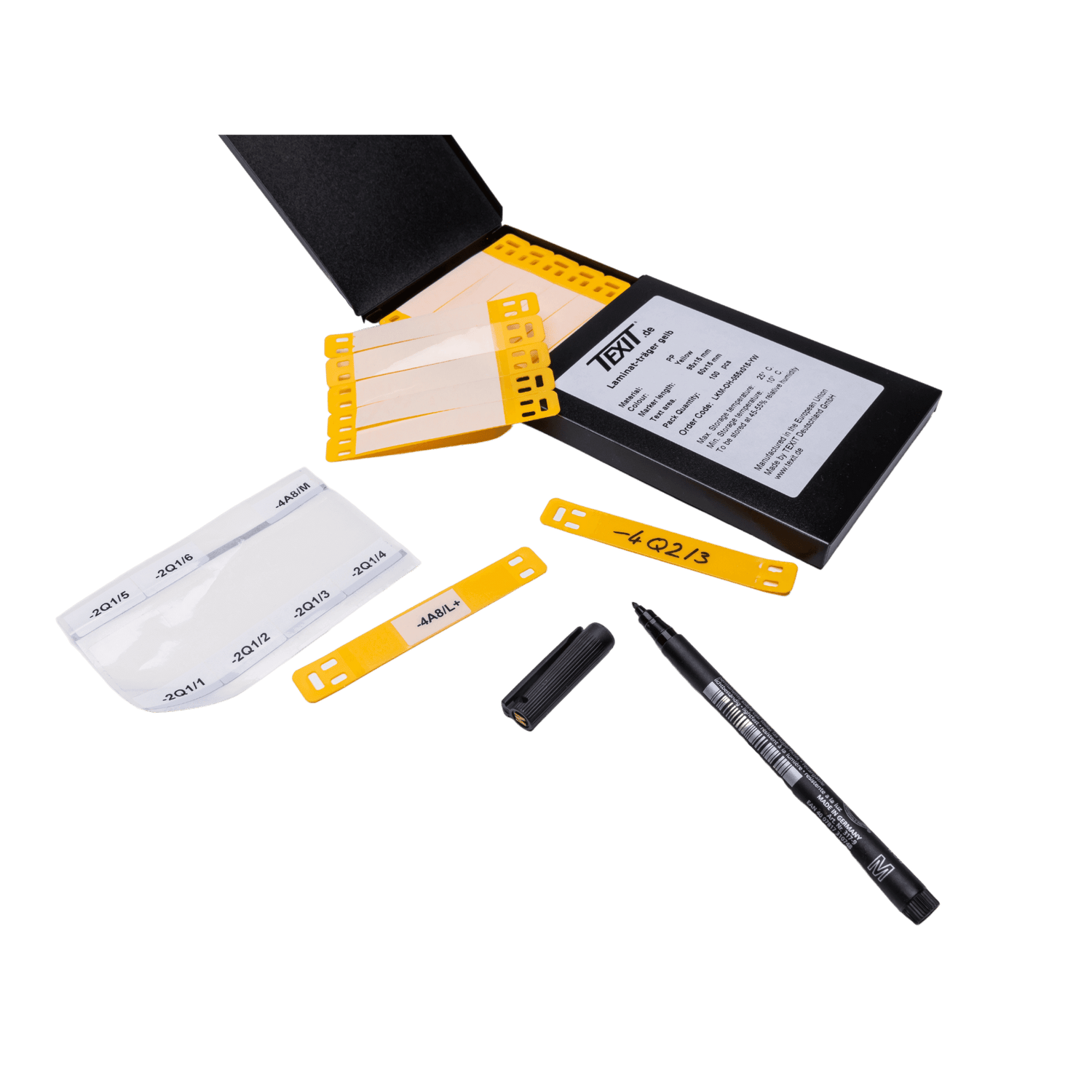

With the LAM cable labels, Texit offers you an entire labeling system with which you can permanently label cables, wires and cable bundles quickly and cost-effectively. The cable labels can be labeled manually by hand or with pre-printed labels. This is why they belong to the cable labels of the manual labeling solutions, which save you the cost of purchasing a printing system. Texit labeling plates are therefore also suitable for small or occasional use. Despite the manual labeling, cable marking with LAM cable labels is durable and robust.

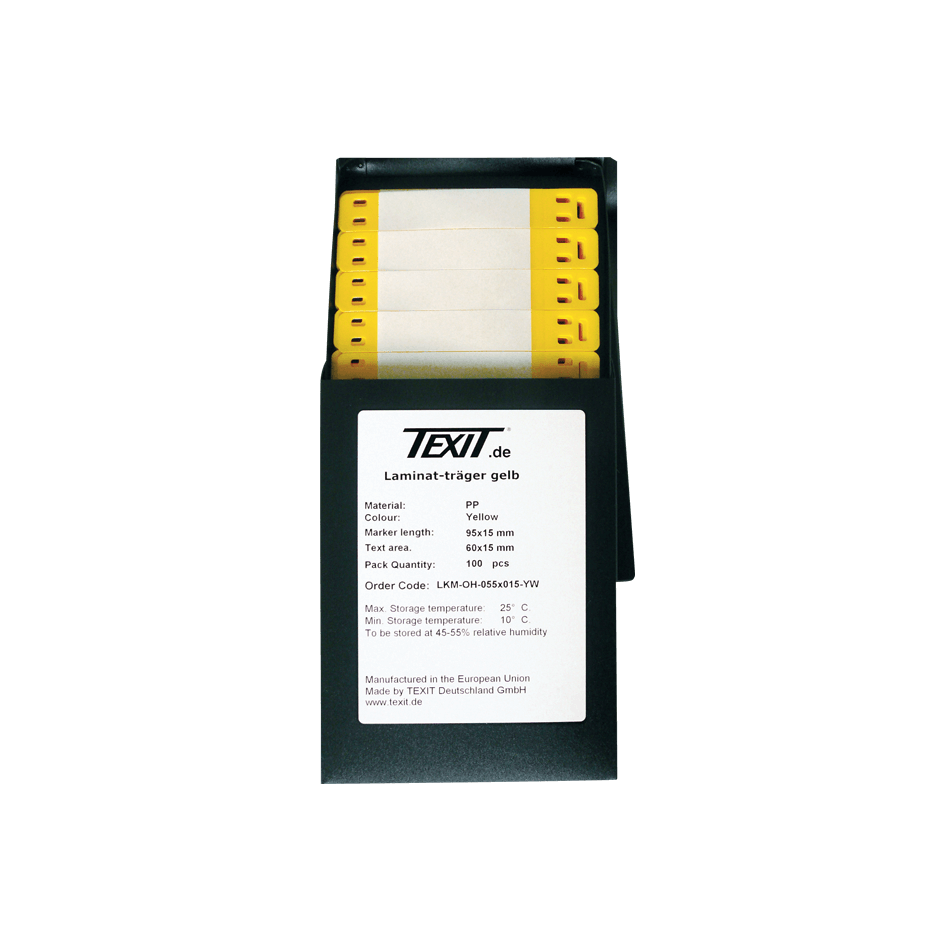

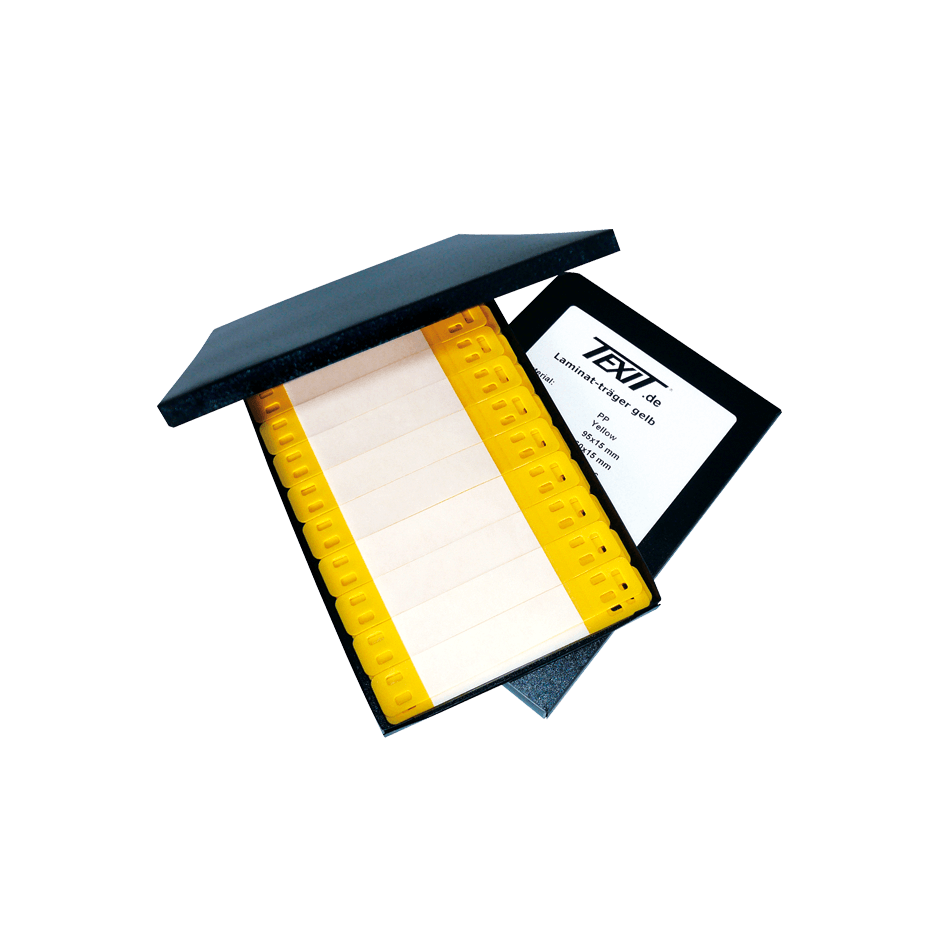

Cable labeling tags material and structure

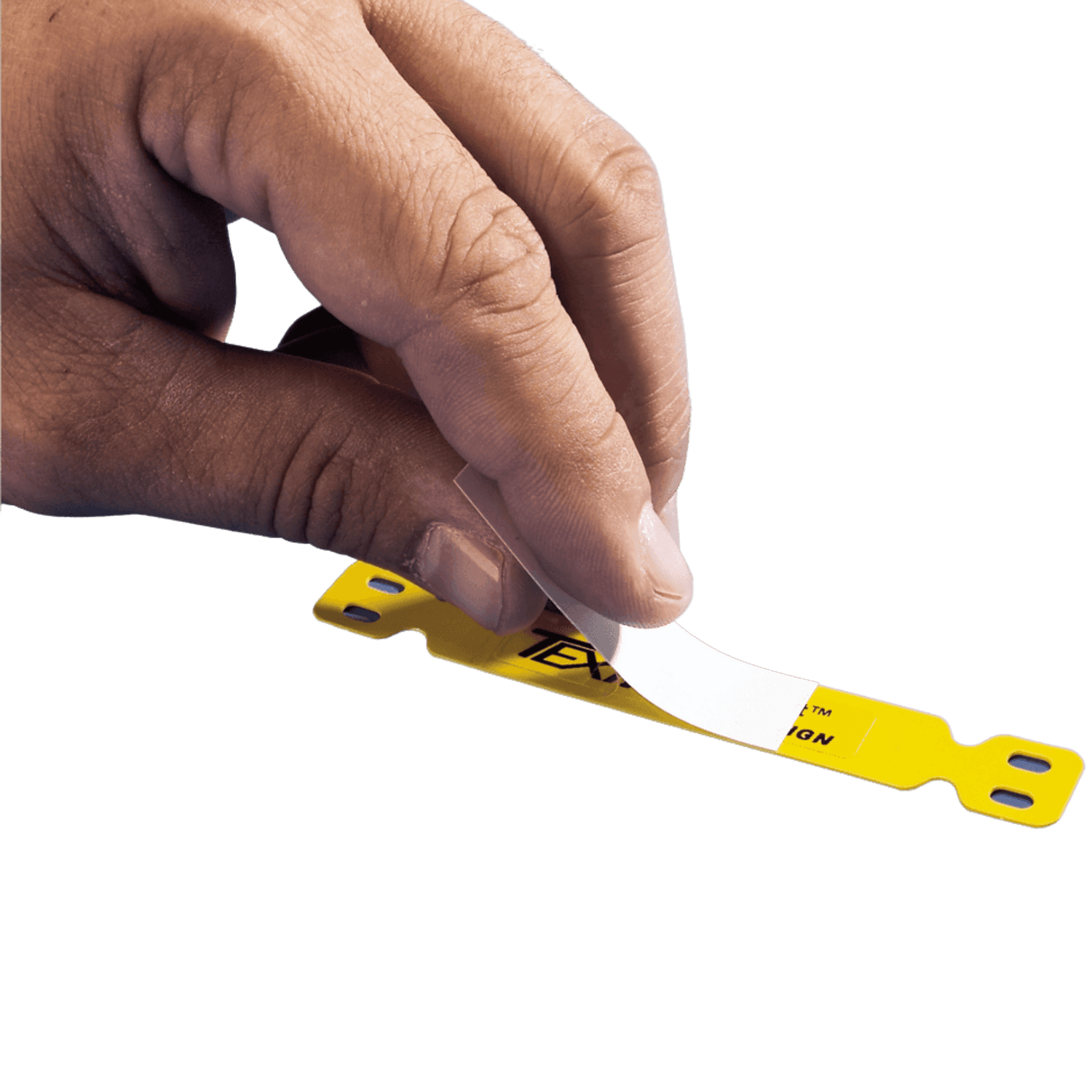

The LAM markers are made of high-quality polypropylene and have laminate films that protect the cable markers after labeling. The labels are already provided with the laminate film so that you only need to stick the film over the marking after labeling.

Polypropylene is a halogen-free plastic that can withstand temperatures from -10 to +60 degrees Celsius without any problems. For this reason, the labeling plates are also suitable for use or application on systems in outdoor areas.

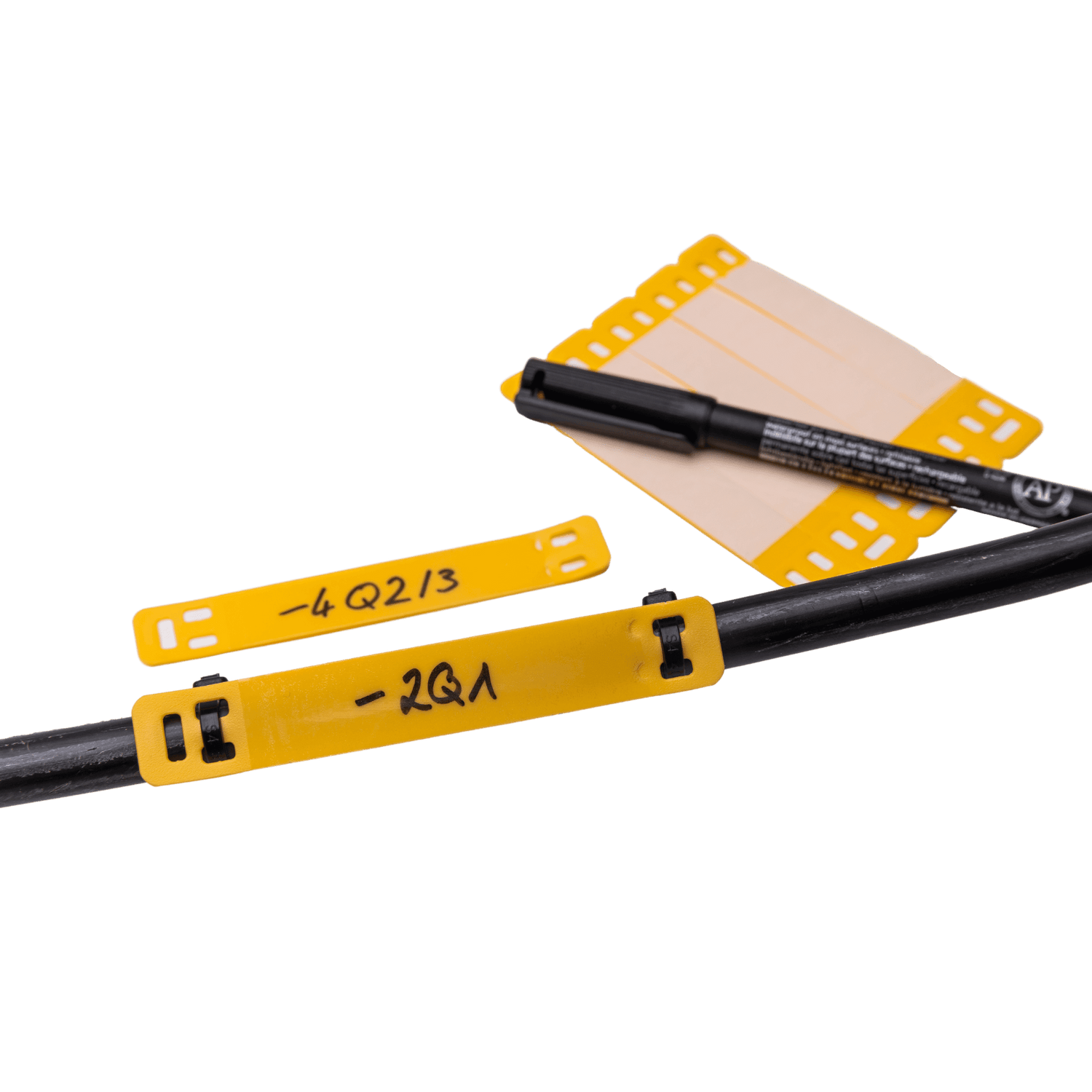

You only need cable ties to mount the LAM markers. The cable ties are used to attach the labels to the left and right of the marking on the corresponding cables, bundles or lines. This makes the cable markers suitable for a wide range of cable diameters. This fastening method means that the cable labels can also be attached after the cable has been installed for cable labeling.

Size and color of LAM labeling plates

In our standard assortment the cable markers are available in the color yellow. Yellow is very often used for cable markings in the electrical industry as well as in control cabinets. The markers are available in standard sizes 70-130mm width and 14-15mm height. The exact size dimensions can be found in the article list above.

Since our customers in industry, especially in the field of cable assembly and control cabinet construction, often have special requirements for the marking labels, we at Texit also manufacture markers for you in special designs. Do you need a different color or size? We can manufacture individual products for you on request. To do this, send us an inquiry with data on your requirements. You will then receive an individual offer from us. You can find more information on our service page.

Delivery of labeling plates Identification

In our warehouse, the availability of products from the category of cable labels from our standard range is high. Therefore, we can offer you as a customer fast delivery times. Before shipping, the quality of the material is checked in our warehouse. You will receive the cable marking labels from our standard assortment usually in 3 to 5 working days. So you can already start with the cable marking within one week.

For custom made products, you will get an estimated delivery time in the quote. Since the products must be manufactured specifically for you, the delivery takes a little longer. However, thanks to our intra-European production, we can offer you fast delivery even for custom products.
