In this article, we show you how you can label your electrical cables easily, flexibly and permanently legibly ➡️ With these 3 methods, you can label your electrical cables in no time at all:...
Halogen-free
UV-resistant
UL94 compliant
Product description
Product description
The HTX-AIO cable markers without cable ties are made of the robust plastic material mix polyether-polyurethane and can be easily attached to the corresponding cable using the attached loop (we recommend using them for a cable with an outer diameter of 2.8 - 8 mm). Thanks to the prongs, the loop can only be tightened in one direction. This prevents unintentional detachment of the markers later. No cable ties or other fastening aids (such as glue or grommets) are required for installation.
The material is halogen-free, which prevents the formation of toxic gases in the event of a fire. These cable labels are also ideally suited for permanent outdoor use. They are extremely robust against environmental influences (UV-resistant, waterproof, extremely smudge-proof, abrasion-proof and tear-proof) and strong temperature fluctuations. The material is also extremely flexible and the edges are rounded to prevent injuries during installation or maintenance work.
Other colors are also available on request!
For an optimal, permanently legible print result, we recommend using a TX Texit thermal transfer printer together with our resin-based FTI-Y ribbon.
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size | Colour |
|
|
|---|---|---|---|---|---|
| HTX-KM-074x012-WE-AIO | 22744 | 74.00 mm wide x 12.00 mm high | white | 2,8 - 8 | 500 |
| HTX-KM-100x012-WE-AIO | 22875 | 100 mm wide x 12.00 mm high | white | 2,8-15 | 500 |
| HTX-KM-125x012-WE-AIO | 22877 | 125 mm wide x 12.00 mm high | white | 2,8-23 | 500 |
| HTX-KM-074x012-YW-AIO | 22745 | 74.00 mm wide x 12.00 mm high | yellow | 2,8 - 8 | 500 |
| HTX-KM-100x012-YW-AIO | 22876 | 100 mm wide x 12.00 mm high | yellow | 2,8-15 | 500 |
| HTX-KM-125x012-YW-AIO | 22878 | 125 mm wide x 12.00 mm high | yellow | 2,8-23 | 500 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service
Cable marker without cable tie (HTX-AIO)
Cable marker
without
Cable tie
(HTX-AIO)
:
:
:
:
:
3-5 working days standard delivery
Availability for collections could not be loaded
Product description
Product description
The HTX-AIO cable markers without cable ties are made of the robust plastic material mix polyether-polyurethane and can be easily attached to the corresponding cable using the attached loop (we recommend using them for a cable with an outer diameter of 2.8 - 8 mm). Thanks to the prongs, the loop can only be tightened in one direction. This prevents unintentional detachment of the markers later. No cable ties or other fastening aids (such as glue or grommets) are required for installation.
The material is halogen-free, which prevents the formation of toxic gases in the event of a fire. These cable labels are also ideally suited for permanent outdoor use. They are extremely robust against environmental influences (UV-resistant, waterproof, extremely smudge-proof, abrasion-proof and tear-proof) and strong temperature fluctuations. The material is also extremely flexible and the edges are rounded to prevent injuries during installation or maintenance work.
Other colors are also available on request!
For an optimal, permanently legible print result, we recommend using a TX Texit thermal transfer printer together with our resin-based FTI-Y ribbon.
Size chart & item designations
Size chart & item designations
| Article description | Article number | Size | Colour |
|
|
|---|---|---|---|---|---|
| HTX-KM-074x012-WE-AIO | 22744 | 74.00 mm wide x 12.00 mm high | white | 2,8 - 8 | 500 |
| HTX-KM-100x012-WE-AIO | 22875 | 100 mm wide x 12.00 mm high | white | 2,8-15 | 500 |
| HTX-KM-125x012-WE-AIO | 22877 | 125 mm wide x 12.00 mm high | white | 2,8-23 | 500 |
| HTX-KM-074x012-YW-AIO | 22745 | 74.00 mm wide x 12.00 mm high | yellow | 2,8 - 8 | 500 |
| HTX-KM-100x012-YW-AIO | 22876 | 100 mm wide x 12.00 mm high | yellow | 2,8-15 | 500 |
| HTX-KM-125x012-YW-AIO | 22878 | 125 mm wide x 12.00 mm high | yellow | 2,8-23 | 500 |
Also available with custom printing ⬇️
Save investment costs & order directly with your desired print? That's what the Texit printing service is for
To the printing service
Informative how-to instructions and detailed information on this product
This might also interest you:
What our customers say:

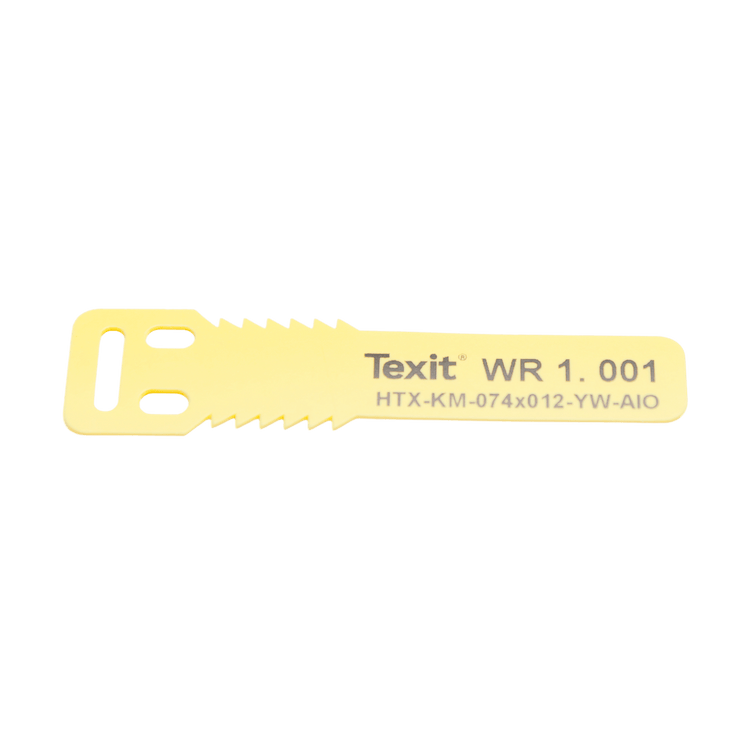

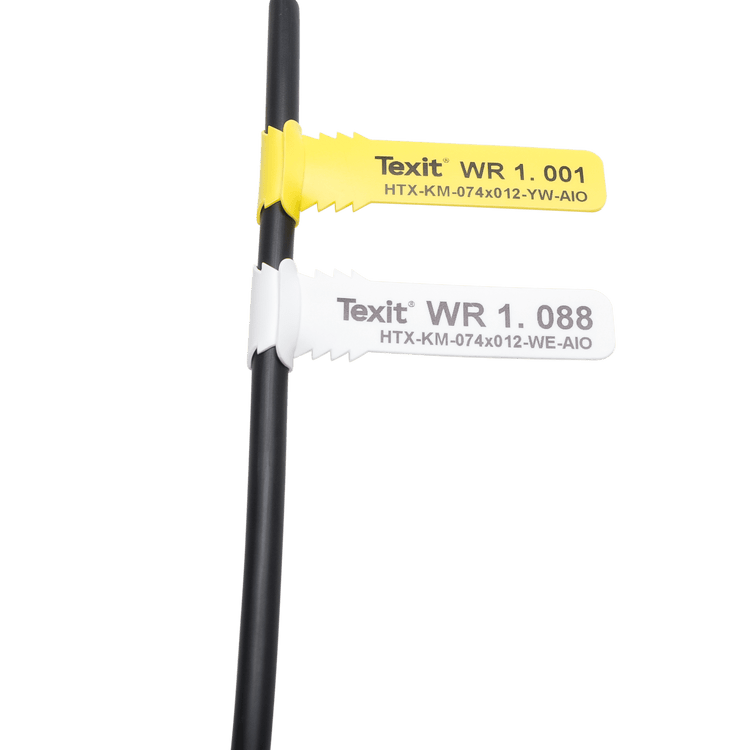

Cable marker without cable tie
The cable markers without cable ties are a further development of our HTX-AIO cable markers. Thanks to the practical fastening loop, you no longer need cable ties to mount these cable markers. The built-in loop can only be tightened in one direction. This makes installation even quicker and easier than with our conventional Texit HTX-KM plastic cable markers and eliminates the need for cable ties.

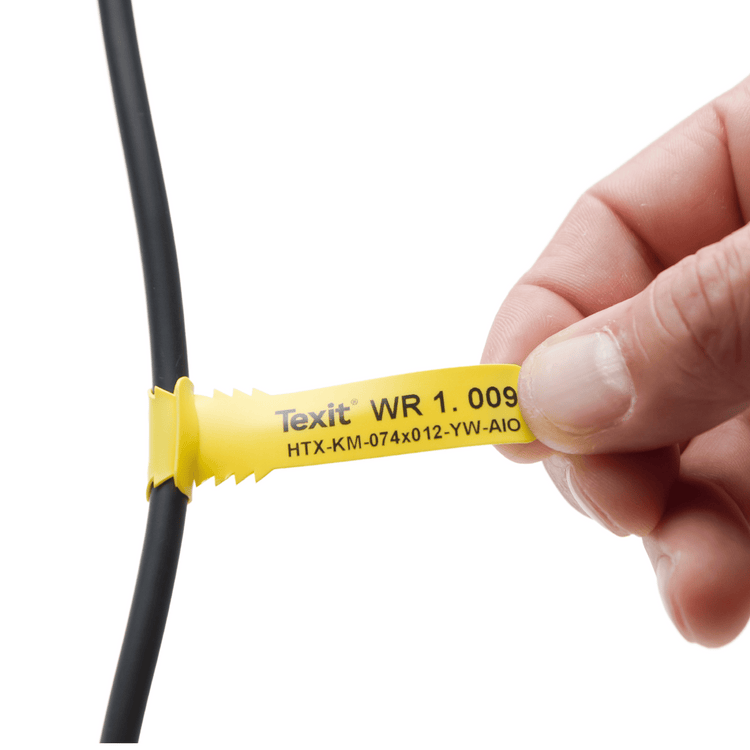

Fastening cable marker without cable tie

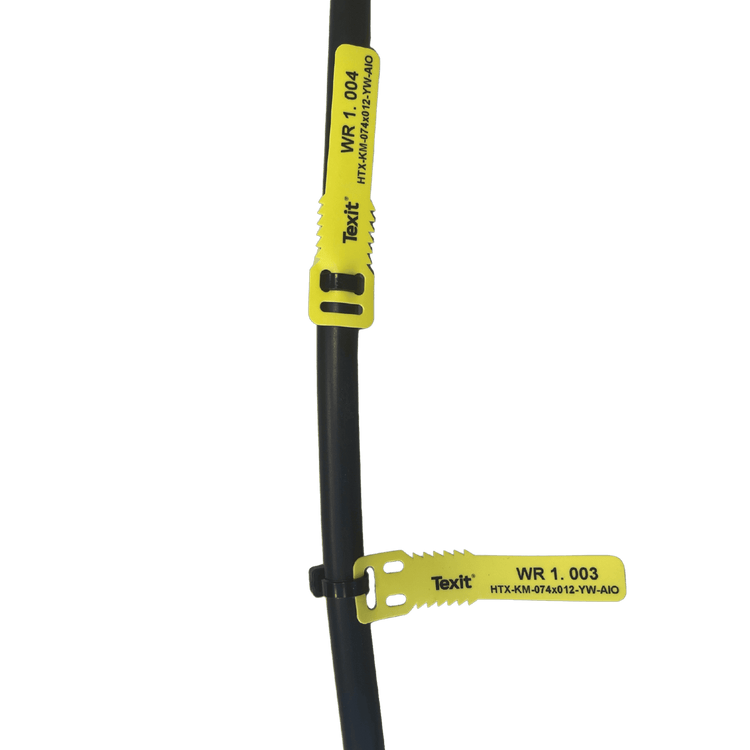

The biggest advantage of this cable marker is obvious: you do not need cable ties, glue or other holders for attachment. Due to the ingenious loop, the marker can be easily adapted to (cable) diameters of 3-8mm and makes the use of cable ties unnecessary. On the inside the plastic loop has outward facing corners, which make a later (unwanted) detachment from the cables impossible. The labeling field for the imprint is not smaller than with our conventional HTX-KM cable markers. In our standard assortment we offer these innovative plastic cable markers in white and yellow. However, many other colors are available on request.
Since we are the manufacturer of the cable markers, we can always produce custom-made products for special requirements. Just contact our service department for this.
Features cable marker without cable tie
The cable markers without cable ties are made of high quality polyether-polyurethane plastic (mixture) and owe this material the special mechanical properties especially the flexibility. Thanks to the flexibility, these markers can also be attached to the cable if there is little space available there. The robust plastic gives the cable markers without cable ties their high resistance to temperatures, humidity, UV rays and cleaning agents. The markers can be used at operating temperatures from -25 to +105 degrees Celsius. The markers are also ideally suited for permanent use on cables in outdoor areas.

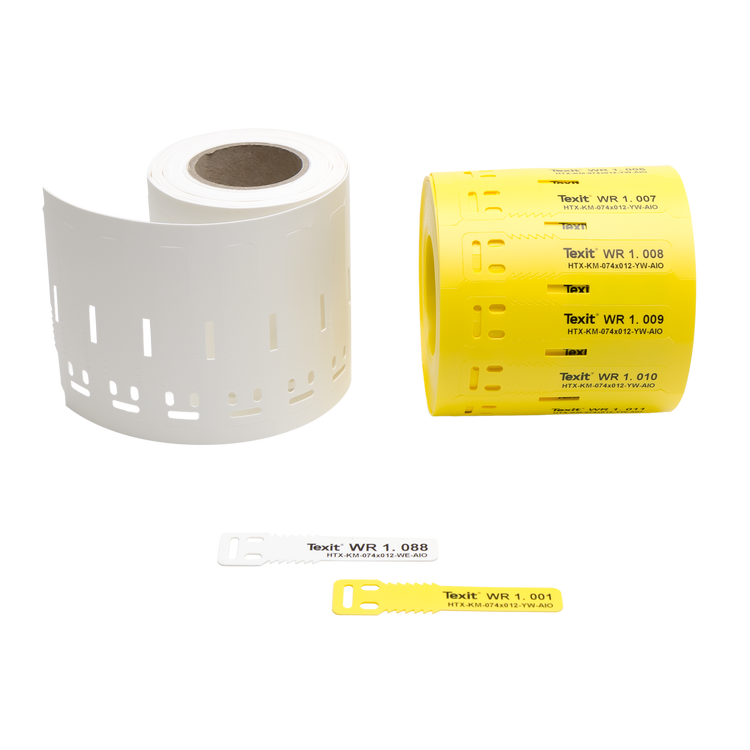

In our standard assortment we have these plastic markers in the color white and yellow and the size 74x12mm and 90x10mm. These size(s) are suitable for cable diameters from 3 to 8mm.

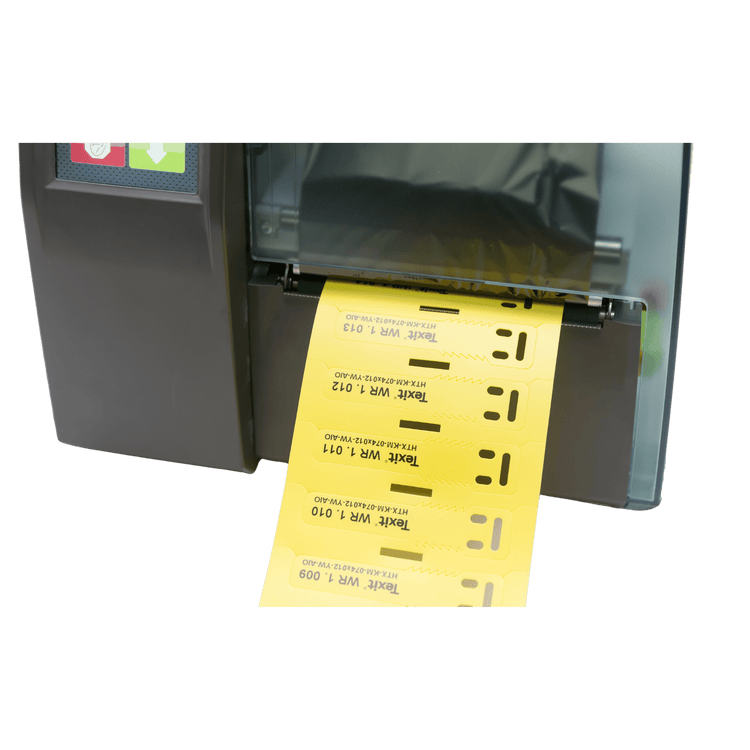

Like the conventional HTX-KM markers, these cable marking labels are printed using the thermal transfer process. By using a high-quality printing system (incl. resin thermal transfer foil), the imprint on the marking field is guaranteed to be of the highest quality. All our Texit TX thermal transfer printers are suitable as printers. Do you have any questions about this article or the printing? Then simply contact our service department. We will be happy to help you.
Delivery and delivery time of the marking
The cable markers without cable ties are supplied in packaging sizes of 1000 pieces per unit. Items from our standard range (color, size) are usually in stock in our warehouse. If the items are in stock, the delivery time (within Germany) is only 3-5 working days. So you are guaranteed to receive the goods within one week after ordering. If the products are not in stock or if they are custom-made, the delivery will take longer. Custom-made products must always be specially made according to the customer's wishes. In case of such an order, you can find the expected delivery date in your order confirmation.
If you still have questions about the delivery status of your order, simply contact our order processing department. You can find the contact details for this on the contact page.
