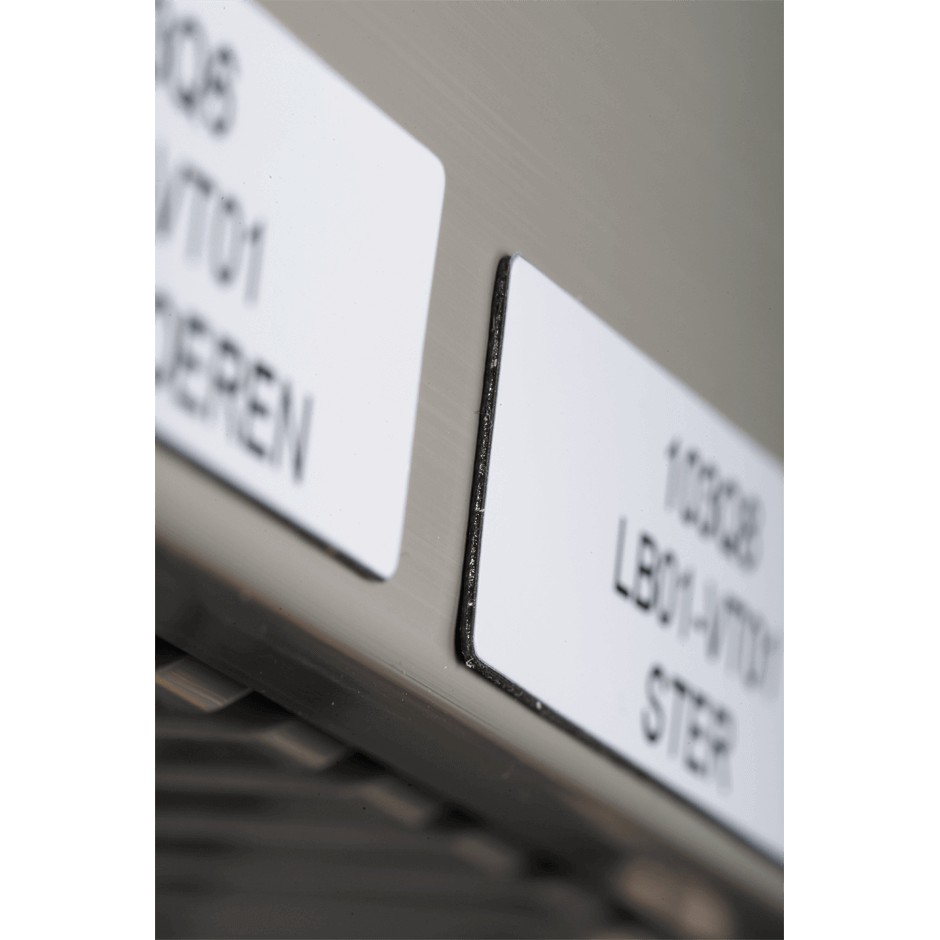

• Nameplate labels

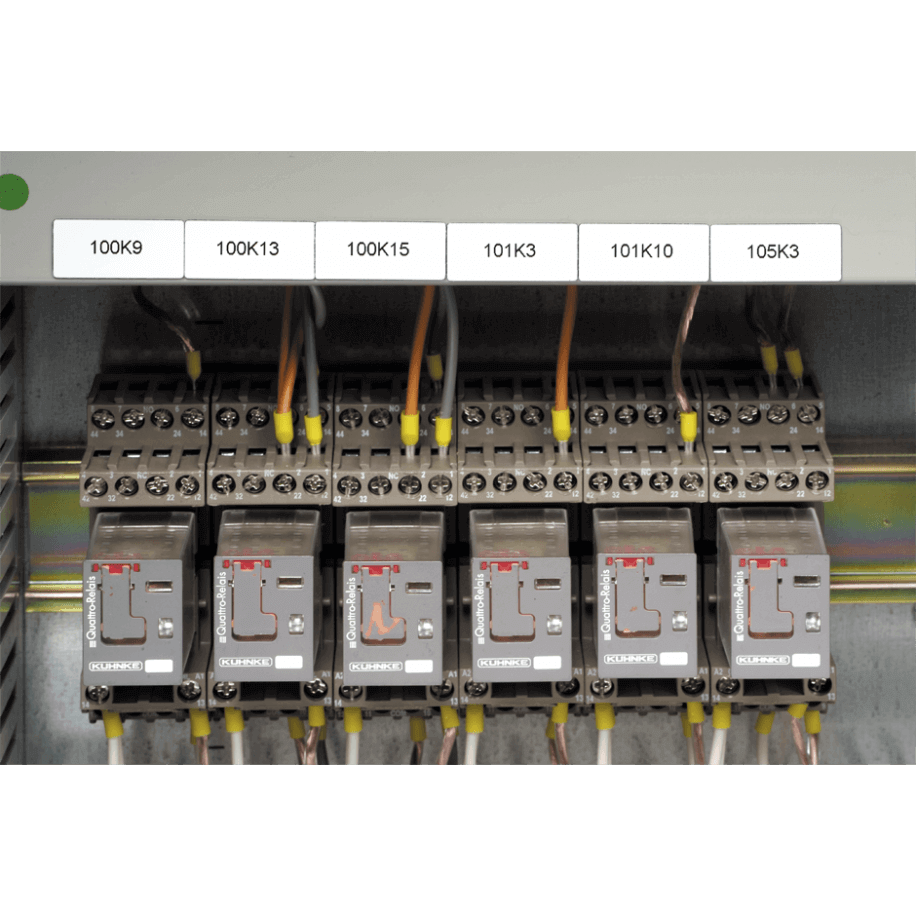

  • Nameplate labels

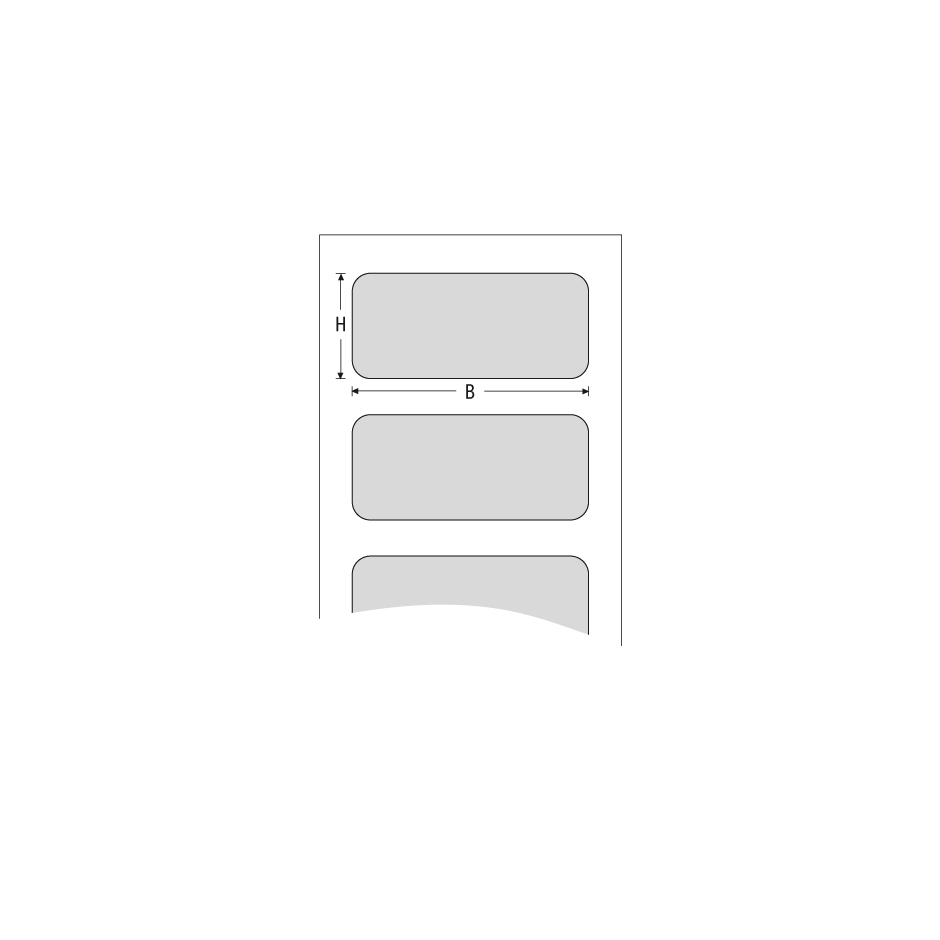

  • Nameplate Labels Dimension

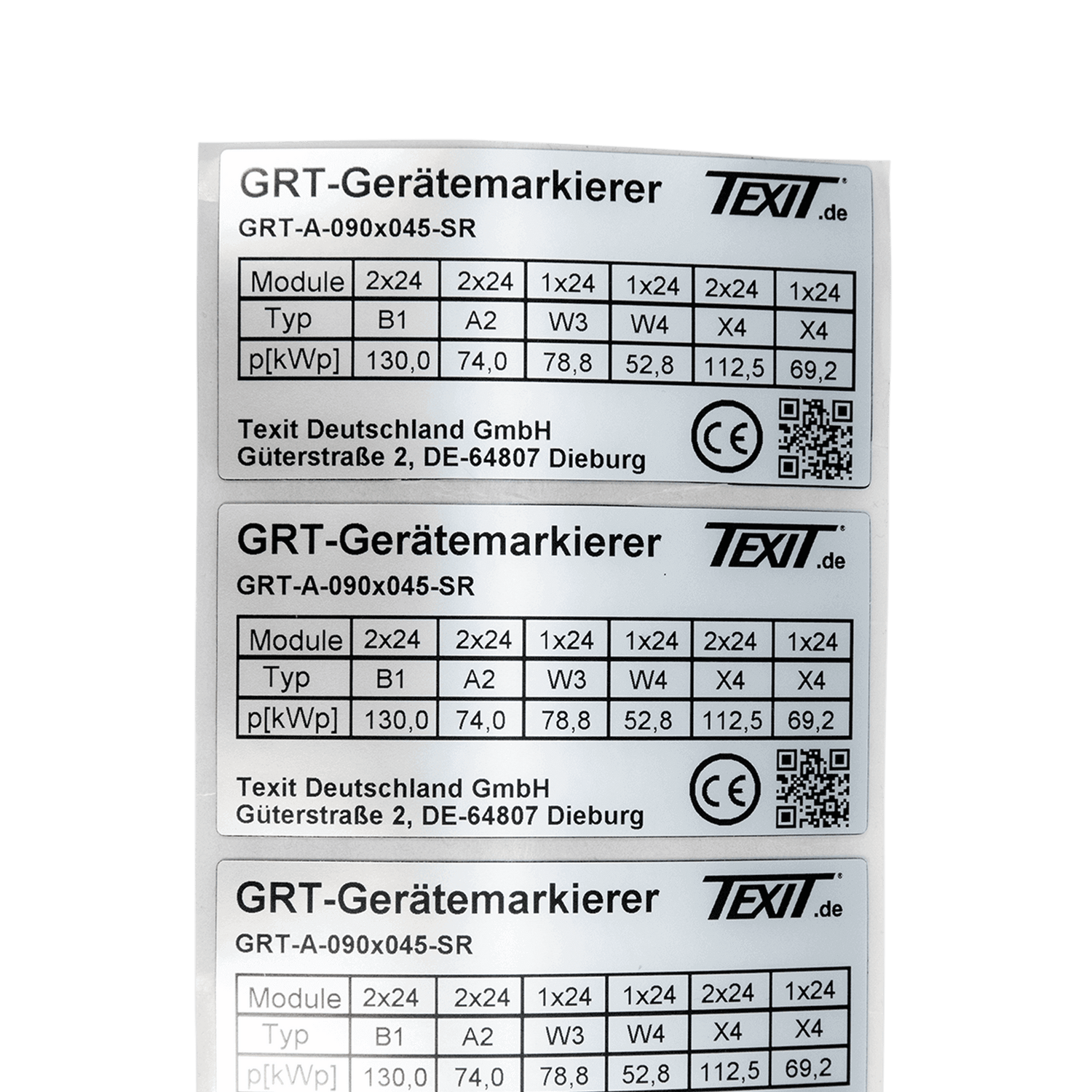

  • Nameplate labels Texit
  • Nameplate label
  • Nameplates Labels
Halogen-free
UV-resistant
  • Nameplate labels
  • Nameplate labels
  • Nameplate Labels Dimension
  • Nameplate labels Texit
  • Nameplate label
  • Nameplates Labels
Jump to product information
1 from 7

Product description

The type plate labels in pre-cut version allow you to produce type plates according to your own requirements using a thermal transfer printer and software instead of having to order them in advance and keep them in stock. Take advantage of the many benefits, such as flexibility, speed and professional design. The nameplate labels are more cost-effective than engraved nameplates and are particularly suitable for the following areas of application: low-voltage switchboards, electrical enclosures, switches, pushbuttons, signal lights, instrumentation, motor controls, production and manufacturing lines, shelving racks and control panels, and much more.

For optimum printing results, we recommend the use of our high-quality Texit thermal transfer films. This increases the durability of the print (e.g. chemical resistance).

With the Texit Designer 11 software, you will receive custom-fit templates for the nameplates, which you can fill with the desired content. If you have any questions, our experts are always available to advise you.

You can request sample products for this product free of charge and without obligation. Simply add a sample product to your shopping cart or product selection and we will send you the labels (without shipping costs). This allows you to test the products in advance for your requirements on site.

Size chart & item designations

Article description Article number Width x height in mm Colour labels_per_roll_sheet
GRT-A-013x007-WE 22598 13x7 white 1.000
GRT-A-013x007-SR 21710 13x7 silver 1.000
GRT-A-018x012-WE - 18x12 white 1.000
GRT-A-018x012-SR 22547 18x12 silver 1.000
GRT-A-022x022-WE - 22x22 white 1.000
GRT-A-022x022-SR - 22x22 silver 1.000
GRT-A-027x008-WE 20524 27x8 white 1.000
GRT-A-027x008-SR 20525 27x8 silver 1.000
GRT-A-027x013-WE 20526 27x12,5 white 1.000
GRT-A-027x013-SR 20527 27x12,5 silver 1.000
GRT-A-027x015-WE 20528 27x15 white 1.000
GRT-A-027x015-SR 20529 27x15 silver 1.000
GRT-A-027x018-WE 20530 27x18 white 1.000
GRT-A-027x018-SR 20531 27x18 silver 1.000
GRT-A-027x027-WE - 27x27 white 1.000
GRT-A-027x027-SR - 27x27 silver 1.000
GRT-A-030x040-WE 21198 30x40 white 1.000
GRT-A-030x040-SR 21048 30x40 silver 1.000
GRT-A-035x015-WE - 35x15 white 1.000
GRT-A-035x015-SR - 35x15 silver 1.000
GRT-A-040x030-WE - 40x30 white 1.000
GRT-A-040x030-SR - 40x30 silver 1.000
GRT-A-045x015-WE 21104 45x15 white 1.000
GRT-A-045x015-SR 20532 45x15 silver 1.000
GRT-A-045x025-WE - 45x25 white 1.000
GRT-A-045x025-SR - 45x25 silver 1.000
GRT-A-048x019-WE - 48x19 white 1.000
GRT-A-048x019-SR - 48x19 silver 1.000
GRT-A-050x015-WE 22605 50x15 white 750
GRT-A-050x015-SR - 50x15 silver 750
GRT-A-050x025-WE - 50x25 white 750
GRT-A-050x025-SR - 50x25 silver 750
GRT-A-060x030-WE 22469 60x30 white 500
GRT-A-060x030-SR 22680 60x30 silver 500
GRT-A-070x018-WE - 70x18 white 1.000
GRT-A-070x018-SR - 70x18 silver 1.000
GRT-A-090x030-WE 20855 90x30 white 250
GRT-A-090x030-SR 21062 90x30 silver 250
GRT-A-090x045-WE 22620 90x45 white 250
GRT-A-090x045-SR 21058 90x45 silver 250
GRT-A-100x030-WE - 100x30 white 250
GRT-A-100x030-SR - 100x30 silver 250
GRT-A-100x050-WE 22321 100x50 white 250
GRT-A-100x050-SR 22322 100x50 silver 250
GRT-A-100x070-WE - 100x70 white 250
GRT-A-100x070-SR 22659 100x70 silver 250
Enlarge table
Article description Article number Width x height in mm Colour labels_per_roll_sheet
GRT-A-013x007-WE 22598 13x7 white 1.000
GRT-A-013x007-SR 21710 13x7 silver 1.000
GRT-A-018x012-WE - 18x12 white 1.000
GRT-A-018x012-SR 22547 18x12 silver 1.000
GRT-A-022x022-WE - 22x22 white 1.000
GRT-A-022x022-SR - 22x22 silver 1.000
GRT-A-027x008-WE 20524 27x8 white 1.000
GRT-A-027x008-SR 20525 27x8 silver 1.000
GRT-A-027x013-WE 20526 27x12,5 white 1.000
GRT-A-027x013-SR 20527 27x12,5 silver 1.000
GRT-A-027x015-WE 20528 27x15 white 1.000
GRT-A-027x015-SR 20529 27x15 silver 1.000
GRT-A-027x018-WE 20530 27x18 white 1.000
GRT-A-027x018-SR 20531 27x18 silver 1.000
GRT-A-027x027-WE - 27x27 white 1.000
GRT-A-027x027-SR - 27x27 silver 1.000
GRT-A-030x040-WE 21198 30x40 white 1.000
GRT-A-030x040-SR 21048 30x40 silver 1.000
GRT-A-035x015-WE - 35x15 white 1.000
GRT-A-035x015-SR - 35x15 silver 1.000
GRT-A-040x030-WE - 40x30 white 1.000
GRT-A-040x030-SR - 40x30 silver 1.000
GRT-A-045x015-WE 21104 45x15 white 1.000
GRT-A-045x015-SR 20532 45x15 silver 1.000
GRT-A-045x025-WE - 45x25 white 1.000
GRT-A-045x025-SR - 45x25 silver 1.000
GRT-A-048x019-WE - 48x19 white 1.000
GRT-A-048x019-SR - 48x19 silver 1.000
GRT-A-050x015-WE 22605 50x15 white 750
GRT-A-050x015-SR - 50x15 silver 750
GRT-A-050x025-WE - 50x25 white 750
GRT-A-050x025-SR - 50x25 silver 750
GRT-A-060x030-WE 22469 60x30 white 500
GRT-A-060x030-SR 22680 60x30 silver 500
GRT-A-070x018-WE - 70x18 white 1.000
GRT-A-070x018-SR - 70x18 silver 1.000
GRT-A-090x030-WE 20855 90x30 white 250
GRT-A-090x030-SR 21062 90x30 silver 250
GRT-A-090x045-WE 22620 90x45 white 250
GRT-A-090x045-SR 21058 90x45 silver 250
GRT-A-100x030-WE - 100x30 white 250
GRT-A-100x030-SR - 100x30 silver 250
GRT-A-100x050-WE 22321 100x50 white 250
GRT-A-100x050-SR 22322 100x50 silver 250
GRT-A-100x070-WE - 100x70 white 250
GRT-A-100x070-SR 22659 100x70 silver 250

Also available with custom printing ⬇️

Save investment costs & order directly with your desired print? That's what the Texit printing service is for.

To the Texit printing service

Nameplate Labels (GRT)
Nameplate Labels (GRT)

:

:

:

Your contact

Drazen Milosevic +49 (0) 6071 928 4012
Product ADVICE REQUEST
Labels per roll/sheet: 1.000
Colour: White
Other colors available upon request.
3-5 working days standard delivery
Show product details → Prices on request.

Product description

The type plate labels in pre-cut version allow you to produce type plates according to your own requirements using a thermal transfer printer and software instead of having to order them in advance and keep them in stock. Take advantage of the many benefits, such as flexibility, speed and professional design. The nameplate labels are more cost-effective than engraved nameplates and are particularly suitable for the following areas of application: low-voltage switchboards, electrical enclosures, switches, pushbuttons, signal lights, instrumentation, motor controls, production and manufacturing lines, shelving racks and control panels, and much more.

For optimum printing results, we recommend the use of our high-quality Texit thermal transfer films. This increases the durability of the print (e.g. chemical resistance).

With the Texit Designer 11 software, you will receive custom-fit templates for the nameplates, which you can fill with the desired content. If you have any questions, our experts are always available to advise you.

You can request sample products for this product free of charge and without obligation. Simply add a sample product to your shopping cart or product selection and we will send you the labels (without shipping costs). This allows you to test the products in advance for your requirements on site.

Size chart & item designations

Article description Article number Width x height in mm Colour etiketten_pro_rolle_bzw_bogen
GRT-A-013x007-WE 22598 13x7 white 1.000
GRT-A-013x007-SR 21710 13x7 silver 1.000
GRT-A-018x012-WE - 18x12 white 1.000
GRT-A-018x012-SR 22547 18x12 silver 1.000
GRT-A-022x022-WE - 22x22 white 1.000
GRT-A-022x022-SR - 22x22 silver 1.000
GRT-A-027x008-WE 20524 27x8 white 1.000
GRT-A-027x008-SR 20525 27x8 silver 1.000
GRT-A-027x013-WE 20526 27x12,5 white 1.000
GRT-A-027x013-SR 20527 27x12,5 silver 1.000
GRT-A-027x015-WE 20528 27x15 white 1.000
GRT-A-027x015-SR 20529 27x15 silver 1.000
GRT-A-027x018-WE 20530 27x18 white 1.000
GRT-A-027x018-SR 20531 27x18 silver 1.000
GRT-A-027x027-WE - 27x27 white 1.000
GRT-A-027x027-SR - 27x27 silver 1.000
GRT-A-030x040-WE 21198 30x40 white 1.000
GRT-A-030x040-SR 21048 30x40 silver 1.000
GRT-A-035x015-WE - 35x15 white 1.000
GRT-A-035x015-SR - 35x15 silver 1.000
GRT-A-040x030-WE - 40x30 white 1.000
GRT-A-040x030-SR - 40x30 silver 1.000
GRT-A-045x015-WE 21104 45x15 white 1.000
GRT-A-045x015-SR 20532 45x15 silver 1.000
GRT-A-045x025-WE - 45x25 white 1.000
GRT-A-045x025-SR - 45x25 silver 1.000
GRT-A-048x019-WE - 48x19 white 1.000
GRT-A-048x019-SR - 48x19 silver 1.000
GRT-A-050x015-WE 22605 50x15 white 750
GRT-A-050x015-SR - 50x15 silver 750
GRT-A-050x025-WE - 50x25 white 750
GRT-A-050x025-SR - 50x25 silver 750
GRT-A-060x030-WE 22469 60x30 white 500
GRT-A-060x030-SR 22680 60x30 silver 500
GRT-A-070x018-WE - 70x18 white 1.000
GRT-A-070x018-SR - 70x18 silver 1.000
GRT-A-090x030-WE 20855 90x30 white 250
GRT-A-090x030-SR 21062 90x30 silver 250
GRT-A-090x045-WE 22620 90x45 white 250
GRT-A-090x045-SR 21058 90x45 silver 250
GRT-A-100x030-WE - 100x30 white 250
GRT-A-100x030-SR - 100x30 silver 250
GRT-A-100x050-WE 22321 100x50 white 250
GRT-A-100x050-SR 22322 100x50 silver 250
GRT-A-100x070-WE - 100x70 white 250
GRT-A-100x070-SR 22659 100x70 silver 250
Enlarge table
Article description Article number Width x height in mm Colour labels_per_roll_sheet
GRT-A-013x007-WE 22598 13x7 white 1.000
GRT-A-013x007-SR 21710 13x7 silver 1.000
GRT-A-018x012-WE - 18x12 white 1.000
GRT-A-018x012-SR 22547 18x12 silver 1.000
GRT-A-022x022-WE - 22x22 white 1.000
GRT-A-022x022-SR - 22x22 silver 1.000
GRT-A-027x008-WE 20524 27x8 white 1.000
GRT-A-027x008-SR 20525 27x8 silver 1.000
GRT-A-027x013-WE 20526 27x12,5 white 1.000
GRT-A-027x013-SR 20527 27x12,5 silver 1.000
GRT-A-027x015-WE 20528 27x15 white 1.000
GRT-A-027x015-SR 20529 27x15 silver 1.000
GRT-A-027x018-WE 20530 27x18 white 1.000
GRT-A-027x018-SR 20531 27x18 silver 1.000
GRT-A-027x027-WE - 27x27 white 1.000
GRT-A-027x027-SR - 27x27 silver 1.000
GRT-A-030x040-WE 21198 30x40 white 1.000
GRT-A-030x040-SR 21048 30x40 silver 1.000
GRT-A-035x015-WE - 35x15 white 1.000
GRT-A-035x015-SR - 35x15 silver 1.000
GRT-A-040x030-WE - 40x30 white 1.000
GRT-A-040x030-SR - 40x30 silver 1.000
GRT-A-045x015-WE 21104 45x15 white 1.000
GRT-A-045x015-SR 20532 45x15 silver 1.000
GRT-A-045x025-WE - 45x25 white 1.000
GRT-A-045x025-SR - 45x25 silver 1.000
GRT-A-048x019-WE - 48x19 white 1.000
GRT-A-048x019-SR - 48x19 silver 1.000
GRT-A-050x015-WE 22605 50x15 white 750
GRT-A-050x015-SR - 50x15 silver 750
GRT-A-050x025-WE - 50x25 white 750
GRT-A-050x025-SR - 50x25 silver 750
GRT-A-060x030-WE 22469 60x30 white 500
GRT-A-060x030-SR 22680 60x30 silver 500
GRT-A-070x018-WE - 70x18 white 1.000
GRT-A-070x018-SR - 70x18 silver 1.000
GRT-A-090x030-WE 20855 90x30 white 250
GRT-A-090x030-SR 21062 90x30 silver 250
GRT-A-090x045-WE 22620 90x45 white 250
GRT-A-090x045-SR 21058 90x45 silver 250
GRT-A-100x030-WE - 100x30 white 250
GRT-A-100x030-SR - 100x30 silver 250
GRT-A-100x050-WE 22321 100x50 white 250
GRT-A-100x050-SR 22322 100x50 silver 250
GRT-A-100x070-WE - 100x70 white 250
GRT-A-100x070-SR 22659 100x70 silver 250

Also available with custom printing ⬇️

Save investment costs & order directly with your desired print? That's what the Texit printing service is for.

To the Texit printing service
22598, 21710, -, 22547, -, -, 20524, 20525, 20526, 20527, 20528, 20529, 20530, 20531, -, -, 21198, 21048, -, -, -, -, 21104, 20532, -, -, -, -, 22605, -, -, -, 22469, 22680, -, -, 20855, 21062, 22620, 21058, -, -, 22321, 22322, -, 22659,

Nameplate Labels Properties

With Texit nameplate labels, you can create machine labels cost-effectively and flexibly on site. The film labels are made of polyester film (polyester labels) and are therefore ideal for printing using thermal transfer printers. These labels can be used to permanently mark components, machines, systems and buildings. The labels are very suitable for outdoor use as they are very robust and UV-resistant. They can withstand temperatures from -40 to +100 degrees Celsius without any problems. The nameplate labels are also halogen-free. This means that no toxic gases are produced in the event of a fire.

Nameplate labels plastic material

Texit nameplate labels are made of polyester material. The surface of the nameplates is made of polyester film, which is applied to a compressible foam carrier. This is very thin (650μ), so the nameplate labels are thin but very resistant. Polyester material is very often used for labels for marking in industry, because it is very easy to process and print, and at the same time extremely durable.

Self adhesive nameplate labels

The nameplate labels have a permanent acrylic adhesive and are therefore self-adhesive. After printing, you can simply peel the labels off the roll and attach them to the desired surface. Make sure that the surface is clean and dust-free. This is the best way for the acrylic adhesive to hold. The nameplate labels have been produced for permanent labeling of machines, equipment and buildings in industry.

Nameplate labels silver on roll

In our standard range, the nameplate labels are available in the colors white and silver and in the sizes 13-100mm width x 7-70mm height. More detailed information on the size (e.g. also 63.5 x 29.6 mm) can be found in the table at the top of the website. These colors and sizes are the most commonly used colors for nameplates. Our nameplates are on rolls and not on sheets (a4 sheets) or sheets. They are therefore not suitable for laser printers.

Do you need a nameplate in a different color or size (label width or label height)? As a manufacturer of cable labeling, we can also produce custom-made products for our customers. Simply send us an inquiry with the information on the desired color and size. We will provide you with an individual offer based on this data (incl. item no.) and are often cheaper than the well-known big players such as Avery Zweckform or the classic online specialist store. Do you have any questions about this or our Texit quality? Then simply get in touch with us. You can also find more information about our custom-made products under the heading Service.

Nameplate labels printer

The rating plate labels can be permanently labeled on a rating plate printer. The thermal transfer process enables extremely robust printing. You also have the flexibility to design the nameplates yourself. When using the appropriate thermal transfer ribbon (we recommend a resin ribbon and the use of our TX4/300 label printer), the labeling is resistant to oil, salt water, conventional chemicals and UV rays. You can find the right articles for an optimal printing result further up on the website under suitable accessories.

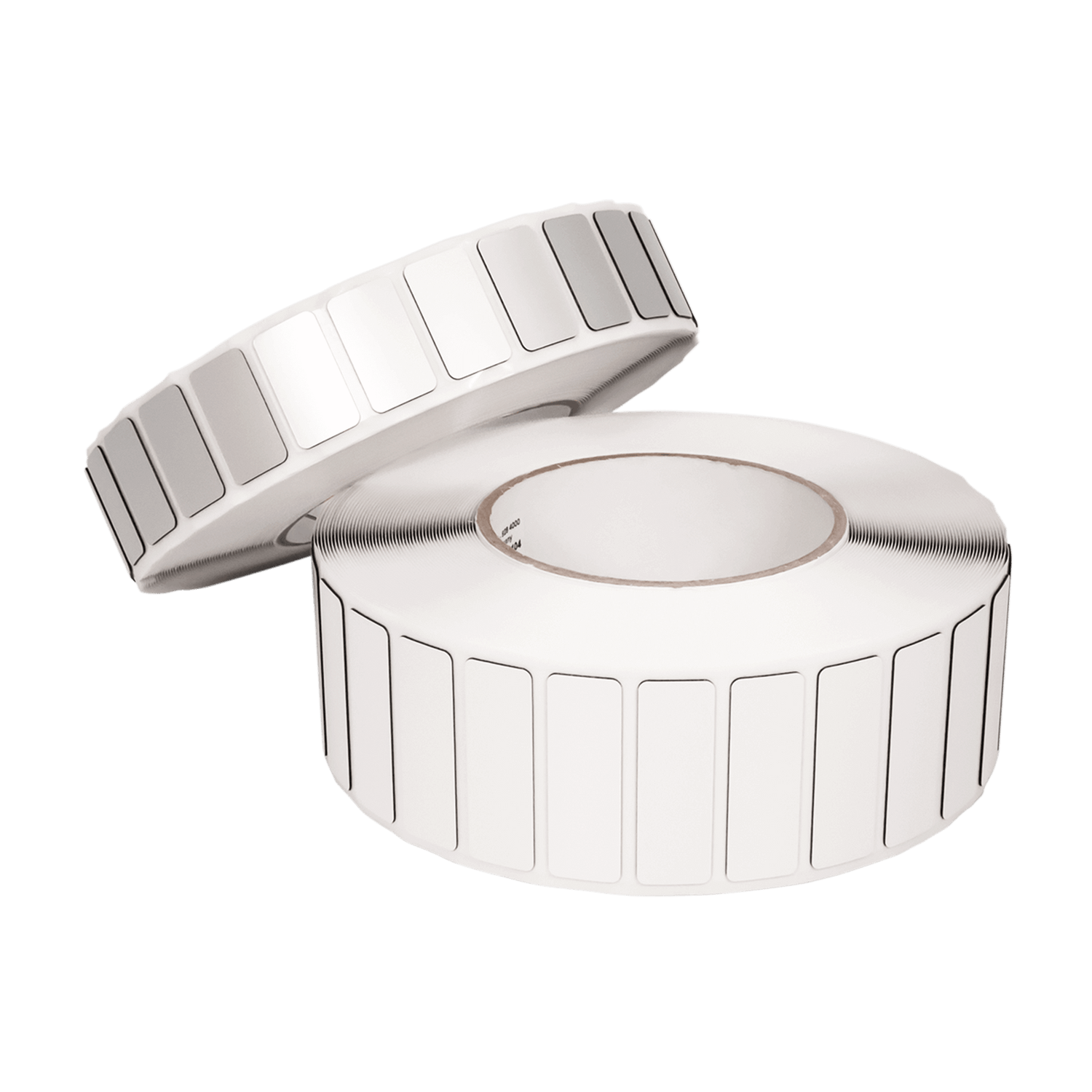

Nameplate labels roll

We supply the nameplate labels from our warehouse on a roll. This format offers the advantage that you as a customer can simply insert the nameplate labels into the printer. When we receive your order, we check whether we have the items in stock and whether the quality meets our Texit quality guidelines. If this is the case, we can send the products directly to the shipping department. You will then receive the items within 3 to 5 business days.

For custom-made products, the delivery takes several days, because the products must be specially manufactured for you. You will find more detailed data on your delivery on your order confirmation. Do you still have questions about the nameplates or their delivery? Then simply contact us, we will be happy to advise you.

Nameplates application




FAQ Nameplate labels silver

What is the difference between labels and stickers?

Labels and stickers differ mainly in their purpose and design: Labels are used for factual identification and information transfer. They are used, for example, for inventory marking, for marking devices and components with serial numbers or for property marking (e.g. company property). They are usually simply designed and functional and are made of high-quality, durable material (e.g. polyester film for labels).

Stickers, on the other hand, often have a decorative or promotional function, are visually striking and are used to present messages, logos or designs - for example on cars, laptops or in advertising. They are cheaper and not as high quality (e.g. adhesion) and are sold in larger quantities.

In everyday life or colloquially, however, the terms labels and stickers are often used as synonyms.

Who are Texit rating plate labels suitable for?

The type plate labels from Texit Deutschland GmbH are suitable for all companies that need to mark machines, devices or systems permanently and in accordance with standards. Our labels are used in a wide range of industrial sectors - from mechanical and plant engineering to the electrical industry(control cabinet construction, component identification, IT devices) to medical technology and railroad technology (as our labels also comply with EN 45545). They are ideal for manufacturers, OEMs, maintenance engineers and system integrators who value durable, weather-resistant and individually printable labels. Thanks to robust materials and certified quality, Texit nameplates meet the highest requirements for adhesion, legibility and durability - even under extreme environmental conditions.

Ideal for the following groups of people:

Machine and plant manufacturers

Electrical engineering and switch cabinet builder

Vehicle parts supply industry

Medical technology manufacturer

Railroad and rail vehicle technician

Maintenance & service companies

Technical documentation service provider

System integrators & OEMs



What must be on a rating plate?

What needs to be on a rating plate depends on the area of application, the legal requirements and, if applicable, the relevant standards (e.g. CE marking, Machinery Directive, DIN or EN standards). For machinery and technical equipment in the EU and Germany, for example, there are clear requirements in accordance with the Machinery Directive 2006/42/EC and DIN EN ISO 12100.

Typical details are

Manufacturer information (CE mark)

Product name

Serial number or production number

Year of manufacture or date of manufacture

Technical data (depending on application)

Safety markings and symbols

Standards or approvals



How can I print nameplate stickers?

As a manufacturer of high-quality nameplate labels, we offer our customers two flexible options for labeling: either you can do the printing yourself - using one of our specially adapted thermal transfer printing systems, which we supply including suitable label materials and ribbons - or you can simply leave the printing to our Texit printing service. Our experts take care of the precise and standard-compliant printing of your film labels - entirely in accordance with your individual specifications. This gives you the choice between maximum independence and professional all-round service - depending on your requirements and the scope of the project.

What our customers say:
